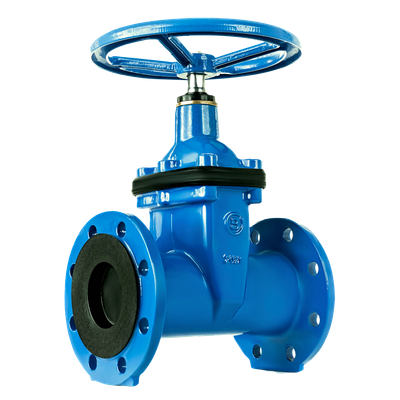

BLUCAST - Model 115F5 -Gate Valve (F5)

FromBlucast UAB

SHARE

Flanged gate valve for drinking water and neutral liquids up to +70°C.

Most popular related searches

gate valve flange

flanged gate valve

water neutralization

Non rising stainless steel stem
Full bore
Low closing torque
Clockwise closing (anti-clockwise closing option available)
Maintenance free
Guided wedge to ensure correct sealing
100% watertight
Replaceable wedge nut
No zones of retention
Dust protection flanges for sizes DN40-DN250
Edge protection gasket to avoid damage during transport, storage and assembly for sizes DN40-DN300

Design in accordance to EN1074 and EN1171
Face to face dimensions according to EN558-1 (series 15) and DIN 3202 (F5)
Flange end connections according to EN1092-2: PN10&PN16
Maximum working pressure: PN16 / 16 Bar
Working temperature: 0°C - +70°C
Fully vulcanized wedge in EPDM according to EN681
Stainless steel bolts
Color RAL5015
Powder epoxy coating at least 250 μm thickness
