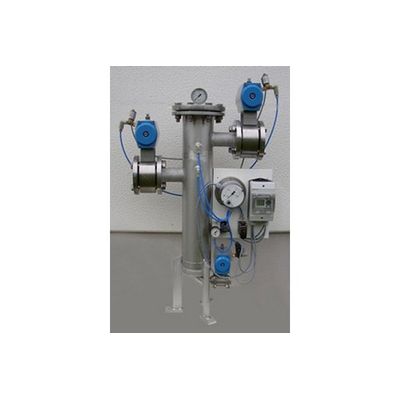

ETL - Model ABF -Automatic Backflush Filter

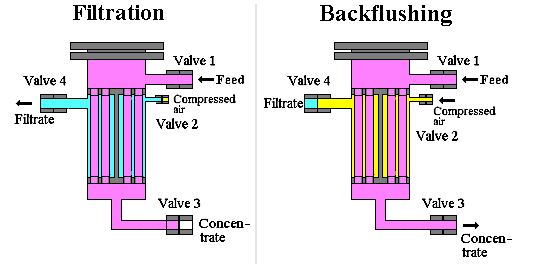

Filtration of product liquids. Filterelements porosmet® in stainless steel or Polypropylene. Filter pore size > 25 µm. Flowrates between 10 and 15,000 l/h. Crossflow or deadend working by switch in the steering. Backflushing with compressed air, foreign liquid or filtrate.
Backflushing depending on time and/or pressure drop. Very short backflushing time. Material stainless steel or Polypropylene.
