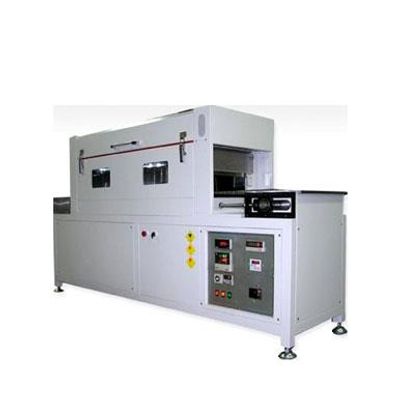

ETSP - Model ITO Series -Conveyor Ovens
FromETSP Co., Ltd.
Conveyorized oven for aging, curing, preheating, water dry-off, paint drying, plastic curing, epoxy curing etc. Mechanically convected, vertical down airflow or horizontal side-to-side airflow provides uniform heat distribution throughout the work chamber and increase drying efficiencies. The heating elements and circulation fans/blowers are located in a plenum in the top of the oven.
Most popular related searches
- Mechanically convected, vertical airflow or horizontal side to side airflow provides uniform heat distribution throughout the work chamber and increase drying efficiencies.
- Fresh air intake and exhaust outlets are provided for enhanced circulation and temperature uniformity
- HEPA filtered for clean prcoess application
- Custom design conveyor ovens are available to filt all customer`s requirement.
- Computer control is available.
- RS232/RS485 data interface
- Temperature range : RT ~ 260 ℃ (changeable according to user`s demand)
- Temperature stability : Less than ± 0.1 ℃
- Input power requirements : 230V ±10%, 380V ±10%, 50Hz/60Hz, 1Ph/3Ph
- Controller : Interactive input system using a ket-pad (Max. 30pattems, Max. 300segments)
- Safety devices : Leakage breaker, circuit breaker, over heat protector, Belt break detection, Electrical over current relay, tower light and audible alarm, Emergency shut off switch.
