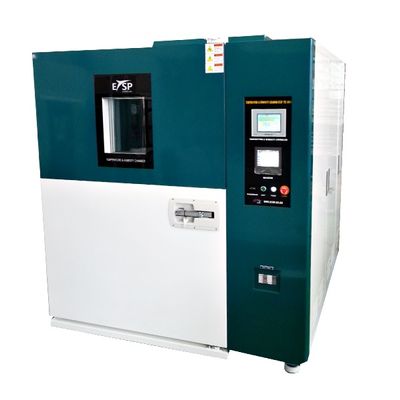

ETSP - Model TH Series -Temperature and Humidity Chamber
FromETSP Co., Ltd.
ETSP-TH series are climatic (temperature and humidity control) version chamber for durability or operating status of parts and products in extreme conditions. Solved noise, bad humidity control and condensation, slow temperature/humidity variations, unbalanced air distribution inside chamber.
Most popular related searches
humidity control
temperature humidity chamber
humidity chamber
refrigerator temperature
chart recorder
water cooling
condenser coil
safety system
water reservoir
level switch
- Slient compressors using ecologically friendly refrigerants.
- Air temperature variation and quick adaptation of specimens to it
- Friendly, flexible, up-to date control and management systems.
- Allows easy servicing and upgrades.
- network connection of several chambers to a single "master" control unit allowing centralized supervision both in local and remote mode.
- Temperature range :
- -40 ℃ ~ +180 ℃ (single stage refrigeration system)
- -70 ℃ ~ +180 ℃ (cascade refrigeration system)
- Temperature accuracy : Less than ± 0.1 ℃
- Temperature stability : Less than ± 0.5 ℃ at steady state conditions
- Temperature uniformity : Less than ±1 ℃ of setpoint(Less than ±0.1 ℃ at 100 ℃
- Heat-up rate : 0.5 ~ 5 ℃/min
- Cooling rate : 0.5 ~ 5 ℃/min
- Humidity range : 20% ~ 98% RH(10% ~ 98% RH is an optional spec)
- Humidity stability : Less than ±1.5% RH at steady state conditions without heat dissipation in time
- Humidity uniformity : Less than ±3.0% RH
- Condending : Air cooled or water cooled type
- Input power requirements : 220V/380V, 50Hz/60Hz, 1Ph/3Ph
- Shelves
- Viewing window (heater wire including, reinforced window) and interior light
- Cable port and rubber plug
- Caster for moving
- Cartridge type water reservoir with connector
- Dry air supplier for low humidity control
- Chart recorder
- Dust filter for condensing coil
- Additional port hole and rubber plug
- Additional shelves
- Oven networking connection system (RS422/RS485)
- Customization available
