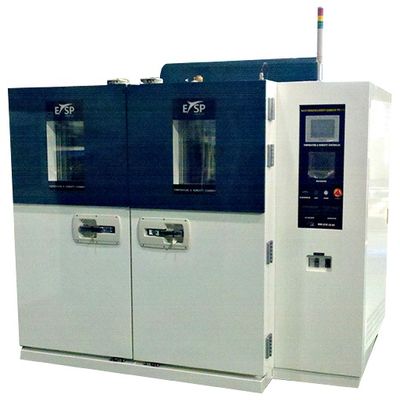

ETSP - Model WTH Series -Solid Construction Walk In Temperature and Humidity Chamber
FromETSP Co., Ltd.
ETSP-WTH series are wide range of walk in temperature and humidity chambers for testing large size components and products. Low noise, better humidity control and no condensation, fast temperature/humidity variations, with balanced air distribution inside chamber.
Most popular related searches
humidity chamber
temperature humidity chamber
noise control system
data acquisition system
walk-in chamber
chart recorder
water cooling
safety system
level switch
noise control
- Hermetically-sealed, silent compressors using ecologically friendly refrigerants
- Air temperature variation and quick adaptation of specimens to it
- Friendly, flexible, up-to date control and management systems
- Noise reduction system
- Allows easy servicing and upgrades
- Computer control is available
- Network connection of several chambers to a single "master" control unit allowing centralized supervision both in local and remote mode
- Temperature range: -50 °C ~ +200 °C (changeable according to user`s demand)
- Temperature stability: Less than ± 0.5 °C
- Temperature uniformity: Less than ± 1.5 °C
- Humidity range: 20% ~ 98% RH(5% ~ 98% RH is an optional spec)
- Humidity stability: Less than ±2% RH
- Humidity uniformity: Less than ±3% RH
- Heat-up rate: More than 5 °C/min
- Pull-down rate: More than 1 °C/min
- Condensing: Air cooled or water cooled type
- Input power requirements: 220V/380V, 50Hz/60Hz, 1Ph/3Ph
- Viewing window (heater wire including, reinforced window) and interior light
- Cable port and rubber plug
- Caster for moving
- Sloped stepping plate
- Low humidity kit
- Chart recorder
- D.A.S (Data acquisition system)
- solar simulation
- Additional port hole and rebber plug
- Oven networking connection system (RS422/RS485)
- Customization available
