Eurisana System

Eurisana consists of air handling probes planted in the ground, connecting pipes, air circulation and dehumidification system, temperature / humidity / flow sensors, VOC detection and a control / registration / management and data transmission system for the control of the system’s parameters via the Web.

VERSATILITY

The EURISANA System can be interfaced, beside the continuous leak detection of hydrocarbons in the subsurface, also with other environmental or operational parameters and is adaptable to both new and existing PoS.

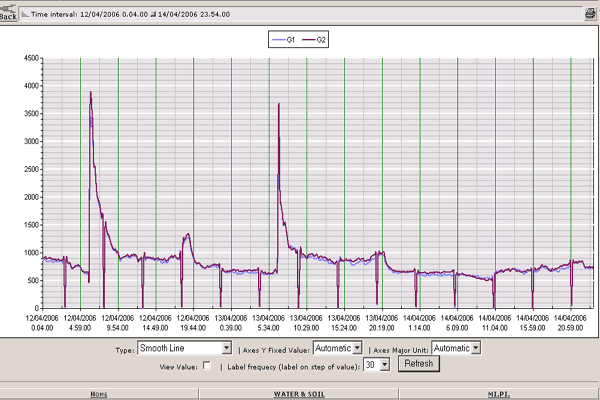

The measured data are available in real time on Eurisana’s website. It is sufficient to access the Eurisana’s holders reserved area, enter the username and password received at the time of the installation and consult all of the data transmitted by the system. In this way EURISANA also responds to the needs of management control, quality assurance and environmental certification (ISO 14001).

PREPARING THE POINT OF SALE FOR EURISANA

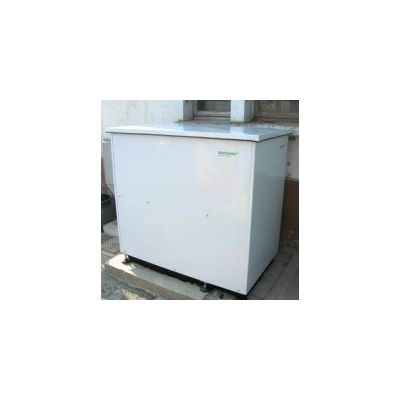

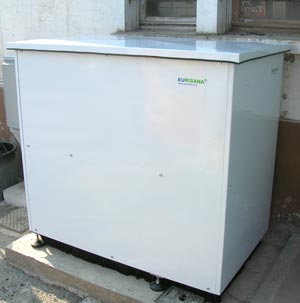

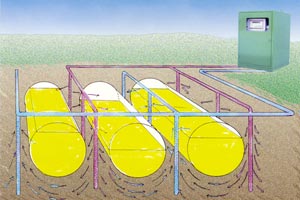

The preparation of a Point of Sale for receiveing the Eurisana System is made by the buried installation of a connected network of micro slotted vertical probes, connected through appropriate line to a manhole, on which is placed the Eurisana machine. Machine that is able to activate a circulation of air between the various probes.

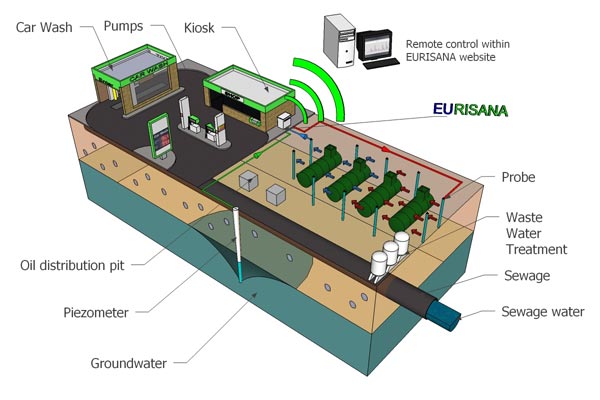

In this way a continuous air movement is formed in the ground, which has the purpose of identifying the presence of hydrocarbon vapors from potential structural or operational losses. The Eurisana System can also be interfaced to the sensors placed in various sensitive points of the plant, such as tanks levels, casing of double wall tanks, openings of the tank truck delivery manholes, possibly existing piezometers, waste water wells, purification systems, etc.. Any analog or digital signal coming from sensors or actuation systems (switches, motors, solenoid valves, etc..) can be interfaced to the Eurisana machine and easily managed from remote.

THE BENEFITS

The benefits of the "environmental" only version are already multiple and can be listed below:

• Real time leak monitoring and detection (continuous detection in active flow)
• Monitoring of all underground structures (both tanks and piping)
• Protection against corrosion of underground structures (reduced soil moisture below the dew point and stopping of iron corrosion)
• "Continuous Mirco-remediation" from Biodegradable pollutants in the unsaturated soil (continuous bioremediation induced by flow)
• Remote management and control (unit - modem - center cluster - remote PC)
• Lower cost (3 functions: monitoring, anti-corrosion, micro-remediation)
• Installation requires no excavation work (installation without operational disruption)
• Zero emissions into the atmosphere (the flow is recycled in the soil)
• Low power consumption (power <1kW and active heat dissipation with reduced thermal drops)
• More affordable anti-pollution insurance policies (savings on insurance premiums)
• Ability to adopt environmental policies "pro-active" (savings from avoided remediations)
• Possibility of environmental certification (prevention strategy)
• Better environmental protection (pollution reduction, increased prevention)
• Increased Company`s value (faster commercial availability of sites)
• Improved financial results (increased value of the sites, decreased environmental liabilities)
• Return on image (ability to sell the "Total Environmental Protection" concept)

The EURISANA System acquires a transversal value that affects many compartments

Environmental

• Pollution prevention and continuous monitoring of leaks (tanks, lines, manholes, etc.)
• Continuous soil remediation, leaks impacts minimization, real time rehabilitation
• Protection against corrosion and decreased leaks chances
• Easy expandability of control to water, air, etc..

Operational

• Easy installation in existing PoS without loss of service
• Very competitive integration in the process of PoS remodeling or new construction
• Storage optimization and sales profile monitoring
• Optimization of logistics and supplies

Managerial

• Better control and management for remote control PoS (integration with environmental and safety aspects)
• Increased level of safety and security
• Reduction of management costs
• Possibility of support in logistics choices

Economic

• Reduction of insurance policies costs
• Increased site’s value and more rapid availability in the event of sale or disposal
• Environmental remediation’s costs clearing in case of leaks
• Continuous leak testing of tanks (UNICHIM approved)

Social

• Easier to obtain environmental and quality certification
• Better coverage of the service (24/7) in case of application in a 24/7 self service PoS
• More stable service in remote / hard to access areas (for 24/7 self service PoS)
• No staff presence inside the tanks needed during installation

Territorial

• Improved widespread coverage of service and product availability (concentrated management networks)
• Real-time monitoring of the environmental status, resulting in lower impact on the environment
