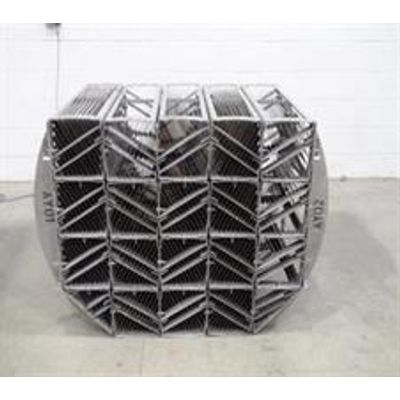

Euromesh - Plate-Pack Coalescer
EUROMESH Plate-pack Coalescer is used for liquid/liquid separation, and it’s process is gravity driven. Additional separation aids are often required to increase the separation efficiency, throughput and or reduce the size of the vessel. Many 3-phase (gas/liquid/liquid) or 2-phase (liquid/liquid) separators do incorporate a Plate Pack Coalescer to achieve these objectives. Plate Pack Coalescers contain numerous parallel plates at a fixed angle, depending on the operational process conditions and whether solids are present. As the flow between the plates are moving in a laminar regime, smaller droplets can be separated than normally achieved by gravity alone. Since the distance of dispersed phases have to travel to the plate surfaces is small, the residence times required for effective separation can be reduced.
When installed with a well-designed baffling system, our Plate Pack Coalescers do have very good motion dampening capabilities, enabling their use to counter surface waves in separation equipment.
The following areas of application can be identified:
- Production and Test Separators
- Gas Scrubbers
- Gas Knock-out Drums
- Slug Catchers
- Produced Water Degassers
- Flash Drums
- Flare Knock-out Drums
- Free Water Knock-out Drums
- Enhanced Oil Recovery Systems
- Mitigation of Wave and Sloshing Effects
Euromesh BV, as member of the Zeta Engineering Group, adopt a detailed approach to the fabrication and manufacturing of separation equipment, and deliver practical- and credible engineering, process design expertise and efficient separation solutions, which are all based on the extensive range of “state of the art” internals technology.
Our wide range of Separation Technologies encompasses:
- Gas / Liquid Demisting Devices
Demisting Cyclone, Vane Type, Mesh Type, In-line Gas, Cleaner (IGC) and Customised Solutions.
- Gas / Liquid Coalescing Devices
Mesh Agglomerator, Vane Type and Customised Solutions.
- Liquid / Liquid Coalescing Devices
Mesh Coalescer, Plate Pack and Customised Solutions.
- Inlet Devices
Various Inlet Vane-type, Inlet Cyclones, Enhanced De-oiling and Degassing models, ZPV Inlet and Customised Solutions.
- Distribution / Calming Devices
Straightening Baffle, Perforated Distribution- and or Calming Baffle and Customised Solutions.
- Miscellaneous Internals
Degasser- and Defoaming Internals, Sand Jetting Systems, Vortex Type Sand Removal Systems, Customised Solutions.
- Consultancy Services –
Process Design Studies, Computation Fluid Dynamics (CFD), Finite Element Analysis (FEA).
The company has an extensive background in trouble-shooting, de-bottlenecking and revamping at client’s production facilities. This gives an unrivalled ability to provide the most functional, cost effective design, along with the commitment to assess future abilities by applying our “whole life” concept and principles of BATNEEC # Best Available Technology Not Entailing Excessive Costs.
Our knowledge and unique range of Separation Technologies allows us to supply bespoke equipment, purposely designed and manufactured for Onshore applications, Offshore platforms, Semi-submersibles, Tension Leg Platforms (TLP) and Floating Production Units (FPUs).
All of our separation equipment is fully trial assembled and inspected, before delivery to the client. In addition, a full-sized mock-up of the vessel and the installation can be undertaken. Finally, it is our practice to offer the services of our qualified project management staff members whenever our equipment is to be installed, whether this requires their attendance onshore or offshore.
