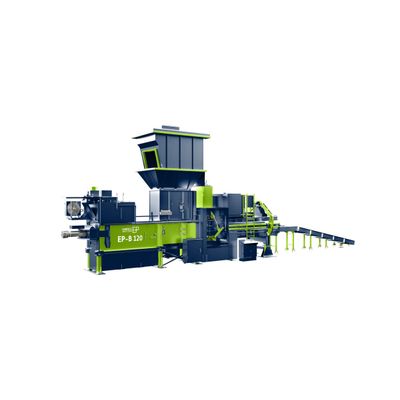

Europress - Model EP-B 120 -Channel Baler / Baling Press with Wire Tying
In the EP series, our channel balers with wire tying present themselves as slim systems of high stability and reliability. Waste such as paper, cardboard, and PET bottles is compacted fully automatically and securely tied with strong wire. Only the amount of wire actually required for an effective result is used. The waste products can then be transported or stored as compact bales to save costs and space. Different than the other EP series balers, this EP-B 120 offers a large bale size of 1,100 x 1,100 mm.
- Tying:
- 4-Fold horizontal
- 5-Fold vertical
- 5-Fold vertical + 4-Fold horizontal
- Press force: 120 Tons
- Filling opening: 1.000 x 2.000 mm
- Channel cross-section: 1.100 x 1.100 mm
- Drive power: 45 - 2 x 75 kW
- Bale weight: 750 - 1.200 kg
- Bale length: up to 2,0 m
- Length: 14.380 mm
- Width: 2.580 mm
- Height: 5.100 mm
- Total weight: approx. 47 Tons
Weight capacity depending on bulk density [theoretical] in tons per hour
- 20 - 30 kg/m³: 7 - 28
- 35 - 50 kg/m³: 12 - 47
- 60 kg/m³: 14 - 56
- 100 kg/m³: 24 - 93
For closing the press plate during the pressing process so that no material enters the lance guide slots. Hydraulically driven closure plate mounted on the press plate.
This closes the needle slots during the press stroke. These needle slots are only opened during the tying process.
As a result, we guarantee a wire-crack-free workflow and reduced cleaning and maintenance intervals.
For closing the bottom during the pressing process so that no material gets into the lance guide slots. Hydraulically driven closure plate installed under the bottom wear plates.
This closes the needle slots in the press floor during the press stroke. These needle slots are only opened during the tying process.
As a result, we guarantee a wire-crack-free workflow and low cleaning and maintenance intervals.
Perforator for perforating and squeezing PET bottles, retractable from the side or rear.
The perforator is equipped with two drums that rotate in reverse direction shortly after each other and are equipped with over 1000 spikes
The spikes are aligned so that the bottles are not trapped between them.
WEP whirler retractable from the rear on a console with a drive power of 22 kW.
This allows smooth surfaces, for example of catalogs, to be broken, so that better compaction is possible.
10 mm thick inner lining of the entire bale chamber made of wear-resistant steel in bolted design.
Special equipment for artificial mineral fibresEquipment package to equip the duct baler ready for approval for the compression of artificial mineral fibers.
For closing the press plate during the pressing process so that no material enters the lance guide slots. Hydraulically driven closure plate mounted on the press plate.
This closes the needle slots during the press stroke. These needle slots are only opened during the tying process.
As a result, we guarantee a wire-crack-free workflow and reduced cleaning and maintenance intervals.
The optimized design of our wire-bound channel balers enables easy maintenance, saving both time and money. Perfectly matched cutting edges ensure an energy-efficient, millimeter-accurate cut with little wear. The straight-line compactness of the EP series stands for effectiveness, proven over a long period of time in the compaction of waste products. A wide variety of materials such as paper, cardboard, and plastics are compressed into firm, space-saving bales that significantly reduce storage and transport requirements.
- Suitable for industrial applications or medium material volume
- Canted press body
- Low space requirement
- Height adjustability of the pressing shield
- Stable construction of the base frame
- Easy handling
- High performance
- Reliable
