Europress - Steel Plate Conveyors

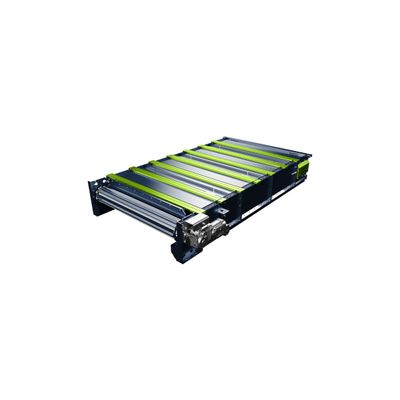

For particularly heavy, hot or sharp-edged materials, we implement extremely robust apron conveyors based on our chain belt conveyor technology. The plate material can be precisely adapted to the respective requirements. Possible materials include steel, plastic or aluminium. The focus is always on safe, smooth operation. At the same time, we create the conditions for easy maintenance in order to offer an economically optimal solution.
- Material carriers: Größe und Abstand variabel
- Effective width [mm]: 600 - 2000
- Chain: M112
- Feeding area: Unter- / Oberflur
- Plate material: Steel, Plastic or Aluminium
- Antriebsleistung [kW]: as required
- Conveying speed [m/s]: 0,3 - 0,7

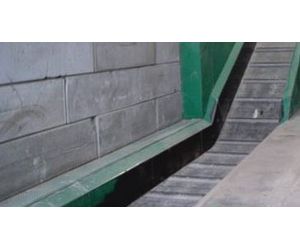

Feeding pit
The feed pit is a basin embedded in the ground for easy and quick feeding of the conveyor belt with the material to be compacted.
For the width and length of the conveyor belt as well as its incline, we adhere to the specifications of our customers for optimal adaptation to individual circumstances.
Schwanenhals
The gooseneck is installed on the transfer hopper to prevent possible blockages when compressing bulky materials.
An M112 chain, which is characterised by high durability, and welded-on plates are included as standard. With appropriate side panels, the system can also be used as a material storage or metering unit. Optionally, the apron conveyors can be equipped with a sensor-controlled overload cut-off to prevent damage and ensure even greater safety.
- Effective widths from 300 to 2800 mm
- Optional central lubrication units
- Lower and upper belt covers on customer request
