Euroquartz - Model 49USMX SMD -Surface-Mount Crystal
FromEuroquartz Ltd

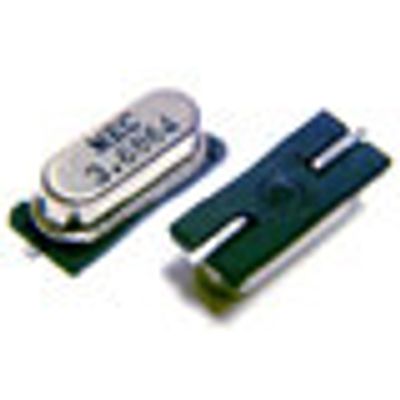

A surface-mount crystal with the same base outline as HC49. A low-cost part ideal for volume applications. Different height parts are available: 49USMXL, height = 3.2mm and 49USMXL25 where height = 2.5mm.
Most popular related searches
- Frequency Range: 3.2MHz to 70.0MHz
- Low cost crystal for mass market applications
- Surface mount version of HC49-4H crystal
- Comprehensie stockholding of standard frequencies
- Customized parts readily available
- Industry-standard package
- Low-profile versions available
- Frequency Range: 3.2MHz to 70MHz
- Calibration Tolerance: ±30ppm at 25°C standard ±10ppm available
- Frequency Stability over Temp: from ±10ppm over -10° ~ +60° from ±15ppm over -40° ~ +85°C
- Storage Temperature Range: -50° ~ +105°C
- Shunt Capacitance (C0): 4pf typical, 7pF maximum
- Load Capacitance (CL): Series or from 8pF to 32pF
- Ageing: ±3ppm maximum (Ta = 25°C, drive 100mW)
- Drive Level: 100mW typical, 500mW maximum
- Reflow Soldering: 260°C, 10s maximum
- Holder: Hermetic seal, resistance weld
- Packaging: EIA 24mm tape and reel 1000 pieces per reel
- RoHS Status: RoHS Compliant
