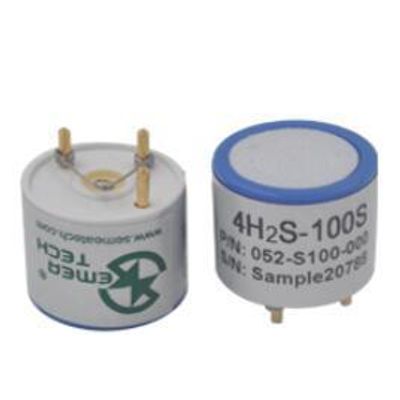

EURsense - Model 4-H2S-100S Series -Gas Sensor

Environmental

• Temperature Range: -40°C - 50°C
• Pressure Range: 1 ± 0.1 atm
• Humidity Range: 15% - 90%RH non-condensing

Life Time

• LongTime Output Drift: < 2% signal/month
• Recommended Storage Temp: 10°C - 30°C
• Expected Operating Life: 2 years in clean air
• Storage Life: 6 months in original packaging
• Warranty: 24 months

Intrinsic Safety Data

• Max. Current at 200ppm 03: < 0.2 mA
• Max. O/C Voltage: 1.3 V
• Max. S/C Current: < 1.0 A
