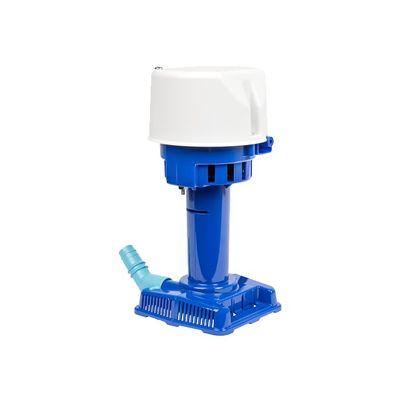

Little Giant - Model CP Series -Evaporate Cooler Pump
Little Giant`s CP Series of evaporative cooler pump is designed for use as replacement unit for OEM equipment. This series is highly durable and easy to use in evaporative coolers, displays, laboratories, water transfer, and other applications.
Most popular related searches
evaporative cooler
condensate draining
drain pump
laboratory water
condensate pump
condensate pumping
air modeling
water laboratory
laboratory cooler
- Available in 1/30, 1/50, or 1/70 horsepower
- Heavy-duty concentric fan-cooled motor
- Corrosion-resistant one-piece steel motor shaft
- Moisture-proof windings
- Snap-off volute plate for easy cleaning
- Universal mounting configurations
- Rated up to 21,000 CFM of air delivery (based on model)
- Available in 1/30, 1/50, or 1/70 horsepower
- Heavy-duty concentric fan-cooled motor
- Corrosion-resistant one-piece steel motor shaft
- Moisture-proof windings
- Snap-off volute plate for easy cleaning
- Universal mounting configurations
- Rated up to 21,000 CFM of air delivery (based on model)
| CP-1 | CP-2 | CP-3 | |
| Horsepower | 1/70 | 1/50 | 1/30 |
| Capacity | 307 gph @ 1` | 502 gph @ 1` | 563 gph @ 1` |
| Shut Off | 9.5` (2.9 m) | 11` (3.4 m) | 12` (3.7 m) |
| Discharge | 5/8" (15.9 mm) or 3/4" (19 mm) ID tubing | 5/8" (15.9 mm) or 3/4" (19 mm) ID tubing | 5/8" (15.9 mm) or 3/4" (19 mm) ID tubing |
| Impeller | Polyester | Polyester | Polyester |
| Electrical | 115/127 V, 60 Hz, 0.8 A 230 V, 50/60 Hz, 0.4 A |
115 V, 60 Hz, 1 A 230 V, 50/60 Hz, 0.5 A |
115 V, 60 Hz, 1.1 A 230 V, 50/60 Hz, 0.56 A |
