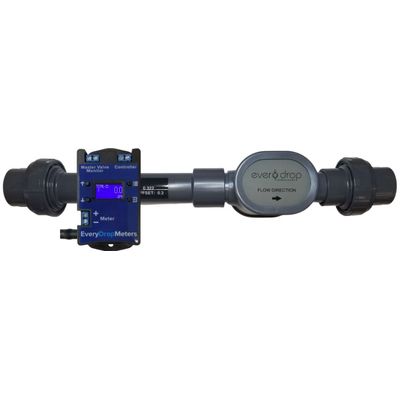

EverydropModel 1104-EX -BUNDLE: Flow Meter W/ Remote Universal Display/Interface

SHARE

This bundle includes a Model 1004-EX (without local display) and the Universal Meter Interface (UMI). The Model 1004-EX w/o local display is a 1” vortex irrigation flow meter that provides highly accurate, real-time flow monitoring.  Includes the Universal Meter Interface (UMI), allowing you to use your flow meter with any flow-capable smart controller on the market, including Rainbird, Hunter, Rainmachine, etc. With a remote display built into the UMI, you now have access to live flow data as you water your lawn and plants. Concerned about a leak? Take a peek at your UMI to see if the flow meter is registering flow. Want more control? Calibrate your system using the UMI so you can be alerted to any anomalies, including leaks and broken valves. You can also monitor your master valve in real-time, making sure that when it`s meant to be closed, there is no flow occurring in your system.

Most popular related searches
  • 2 wire interface to any flow-capable smart controller on the market, including Rachio, Rainbird, Hunter, Rainmachine, etc.
  • Remote display to monitor flow and leaks in real-time.
  • Includes PVC unions for easy installation.
  • Calibration through UMI to monitor flow daily.

Size: 1”
Flow Range (Indicated): 0.5 to 30 GPM (0.1 GPM resolution)
Accuracy:

  • RANGE 1.0 to 20.0 GPM: +/-2% of reading
  • RANGE 20.1 to 30.0 GPM: Usable Over-range, Accuracy Not Guaranteed (~2%)
  • RANGE 0.5 to 0.9 GPM: Leak Detect Range (Not specified; Slower update rate)

Update Rate:

  • RANGE 1.0 to 30.0 GPM: 1.5 seconds
  • RANGE 0.5 to 0.9 GPM: < 1 minute (typically 10 seconds)

Pressure Loss at 20GPM: Less than 1.5 psid
Burst Pressure: 350 psi minimum (Meter body)
Operating Temperature: 32 F to 140 F
Construction Materials:

  • Vortex Generator: Stainless Steel
  • Vortex Sensor: EPDM Rubber (wetted surface)
  • Meter Body: ABS (and PVC pipe 6” extension)
