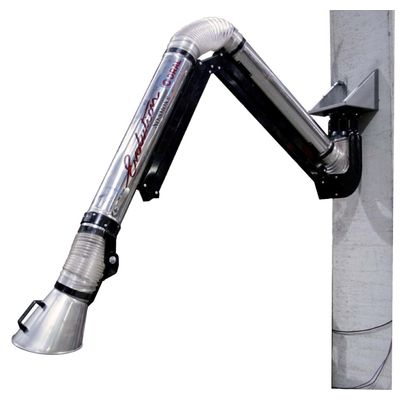

Coral - Evolution No-Smoke ATEX Extraction Arm
The Coral EVOLUTION NO-SMOKE ATEX extraction arms are engineered to efficiently capture and remove hazardous pollutants at their source in potentially explosive environments. These arms employ specialized materials that ensure a proper ground connection, effectively dissipating static electricity generated by airflow through the pipes. The system features a patented external joint design, providing a 360-degree rotation for superior performance, reduced noise, and enhanced air quality, all while minimizing operational costs. Constructed with AISI 316 stainless steel, the arm can be fully configured to cater to food, pharmaceutical, and chemical applications. It is highly adjustable with a unique rotary bearing that enhances usability, and its innovative design significantly lowers static resistance, improving pollutant capture. The flexible design allows for contaminants to be directed to either a central filtration system or exhausted directly into the atmosphere using an optional high-efficiency fan, adhering to regulatory requirements.
The Coral EVOLUTION NO-SMOKE ATEX extraction arms are designed to extract hazardous pollutants at the source and move them towards specific filtering systems in potentially explosive atmospheres.
The construction of our Coral EVOLUTION NO-SMOKE ATEX arms use specific materials to guarantee proper ground connection, dissipating the static electric energy generated by the air flow in the pipes. The Coral EVOLUTION NO-SMOKE ATEX arm is suitable to be used in zones that are classified as potentially hazardous.
- Ideal for food, pharmaceutical and chemical applications
- AISI 316 stainless steel rigid pipes, hardware, bearing, damper and hood
- Proper grounding to dissipate any static charges
- External articulated joints, for easier movement and lower static resistance
- Lower costs, less noise, and improved air quality
- Welding
- Grinding
- Deburring
- Polishing
- Sanding
- Thermal Cutting
- Dry Dust
- Hazardous Dust
- Sandblasting
- Powder Coating
360º rotation to improve performance and lower both costs and noise
Coral EVOLUTION NO-SMOKE arm base is equipped with a custom rotary bearing unique to only Coral which enables a full 360º rotation to optimize usability. This patented external joint design not only offers easier operator adjustability of the arm but also results in a lower static resistance, allowing for better contaminant capture and removal. The improved performance results in lower operating costs, less operating noise, and improved air quality for the operator at the workstation. Overall, this unique design enables the arm to outperform other arms available on the market.
Designed to easily and efficiently capture contaminants at the source
Contaminated air is captured by the fully adjustable hood and passes through AISI 316 stainless steel pipes. Contaminants may be exhausted to a central filtration system or, with an optional high-efficiency fan, to the atmosphere, depending upon regulations.
The body and hood of Coral EVOLUTION NO-SMOKE arm is coupled together by a special, patented external joint and support design that allows for easy and convenient movement.
Optional construction fully in stainless steel to meet your application requirements
On request we manufacture Coral EVOLUTION NO-SMOKE ATEX arm fully in AISI 316 stainless steel which is suitable for the food industry, pharmaceutical and chemical applications.
