EWK - Model FAB - Filtering Separators System
Solve dust removal problems individually and optimally. Fabric filters are an alternative to the electrofilter and are particularly suitable for the separation of dry dusts.
Depending on the application, round, chamber or row filters are used.
The assembly is carried out with
- Ovel hoses
- Flat hoses
- Round hoses
- Filter cartridges
Support fabrics and needle felt quality are determined depending on the harmful gas components and operating temperatures.
- Compressed air Jet pulses on/off-line
- Processing medium pressure off-line
- Processing compressed air off-line
- Foundries, smelters
- Cement, lime, plaster industry
- Rubber, plastics industry
- Chemical, pharmaceutical industry
- Pulp, paper industry
- Metallurgical and steelworks
- Galvanic industry
- Waste management
- Timber industry

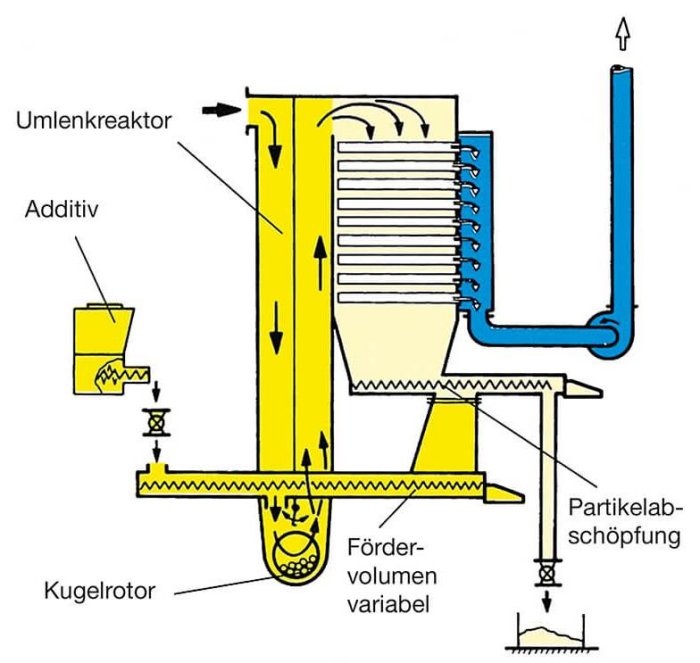

Many combustion and production processes also develop environmentally hazardous harmful gas components such as SOx, HCl, Hg, HF or PCDD/PCDF, which can often occur individually or in combinations together with airborne dust.
These can be bonded adsorptiv lyritly by adding additives such as calcium hydroxide Ca(OH)2 and / or activated carbon or stove coke in the raw gas stream adsorptiv and deposited in the subsequent tissue filter. With the LÜHR ball rotor, high sorption rates and exhaust gas separation levels are achieved.
