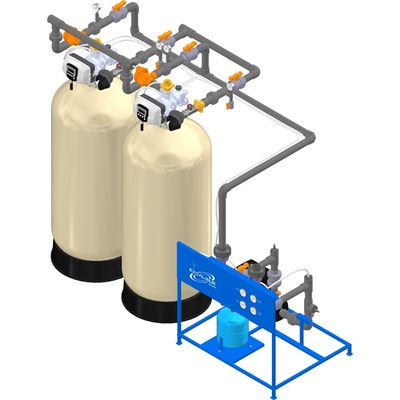

Excalibur - Model EWS FTW-SS5 Series -Twin Parallel Commercial Cooling Tower Side Stream Filters (5-micron filtration)
Excalibur Water Systems’ Twin Parallel Cooling Tower Side Stream Filters are designed for applications with uninterrupted continuous flow demand capacity of filtered water to the cooling tower through side stream. Regeneration, during which time filtered water supply to the cooling tower is still available, is then programmed to occur immediately or at a pre-set time. For this reason, Twin Parallel Side Stream Cooling Tower turbidity removal filtration systems are sized to meet the flow demand with one filter online and the other in regeneration, or both filters online, lowering filtered water flow only during the regeneration period of 15 minutes. Twin Parallel models offer four regeneration modes: differential pressure, meter immediate, meter delayed, or time clock delayed. Excalibur Water Systems Twin Parallel Cooling Tower Side Stream Filters come in different valve sizes/flow rates.

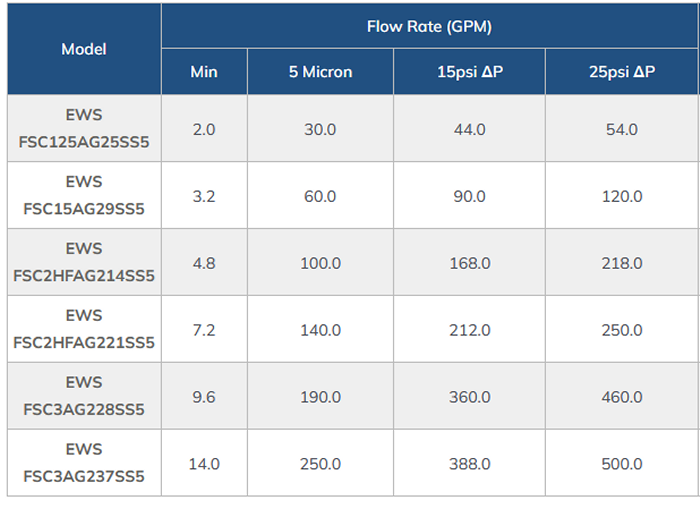

- Flow Rates: 2 - 250 GPM
- Control Valve Sizes: 1.25", 1,5", 2.0"H, 3"
- 5-micron filtration
- 24 hour operation
- Controller with built-in motor control package
- Centrifugal pump with easy serviceability
- Electronically controlled backwash and fast rinse regeneration cycles
- Historical operating data
- Accurate flow meter with totalizer
- Pressure is boosted for separate source regeneration from inline booster pump
- Pressure gauge readings for regeneration separate source, untreated source, pump discharge and post filter
- Blue powder coated carbon steel frame 1” to 3” square tubing
- Pressure relief valve to control maximum water pressure
- 40 psi pressure boost from cooling tower water supply or greater
