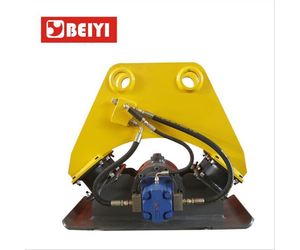

Lydite - Model BYKC 60 -excavator hydraulic excavator concrete compactor

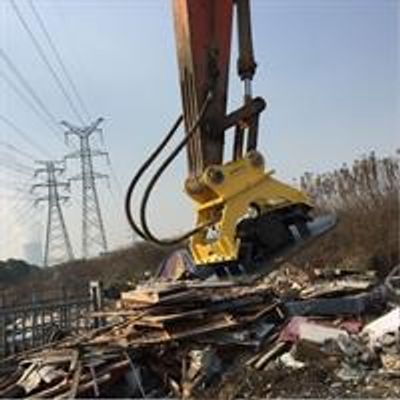

BYK series hydraulic compactor can be applicable to any position, such as horizon compaction, step compaction, bridge abutment, the trench pit compaction ,sub grade compaction, the corner turning point, backfill compacted, concrete pavement patching compacted, tube side ompaction etc, our hydraulic compactor can also be used for pulling piles and broken when necessary. Product Advantages 1.Electronic drive system is installed in the cab, the expensive hydraulic pressure is replaced by the electric power, which saves the cost from the production. Operators in the cab can easily turn on and turn off the quick hitch through the switch. 2. Check valve Protection System: each cylinder installed safety check valve ensures that quick hitch coupler can work when the oil circuit and the circuit is cut off. For more information, you could contact us wxbychina@163.com www.wxbychina.com http://www.wxbychina.com/Contact/Most popular related searches
| Model | Unit | BYKC 60 | BYKC 150 | BYKC 200 | BYKC 300 |
| Applicable Excavator | Ton | 4-9 | 11-16 | 17-23 | 23-30 |
| Power of impulse | Ton | 4 | 6.5 | 15 | 15 |
| Vibration frequency | Rpm | 2000 | 2000 | 2000 | 2000 |
| Oil Flow | L/min | 45-75 | 85-105 | 120-170 | 120-170 |
| Pressure | Kg/cm2 | 100-130 | 100-130 | 150-200 | 150-200 |
| Weight | Kg | 300 | 500 | 900 | 950 |
| Bottom Measurement | L*W*T mm | 900*550*16 | 1160*700*28 | 1350*900*30 | 1350*900*30 |
| Height | Mm | 760 | 920 | 1060 | 1100 |
| Width | Mm | 550 | 700 | 900 | 900 |
