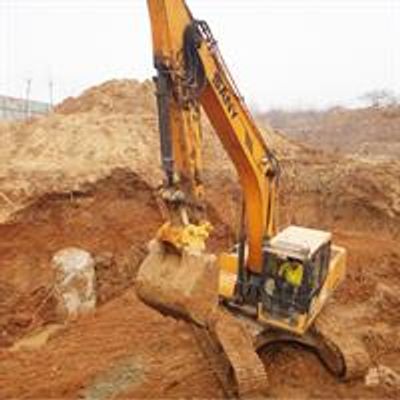

Lydite - Model BYLK45 -excavator hydraulic tilting coupler / hydraulic quick coupler for kinds of excavator

SHARE
FULL AUTOMATIC DOUBLE SAFETY SYSTEM *Electronic drive system is installed in the cab,the expensive hydraulic pressure is replaced by the electric power,which saves the cost from the production. Operators in the cab can easily turn on and turn off the quick hitch through the switch. *Check valve Protection System:each cylinder installed safety check valve ensures That quick hitch coupler can work when the oil circuit and the circuit is cut off. *Safety Pin Protection System:security protection is customized for each excavator according to the different parameters.In the case of the failure of cylinder ,quick hitch coupler can work regularly. For more, please contact wxbychina@163.com www.wxbychina.com http://www.wxbychina.com/Contact/
Most popular related searches
quick coupler
check valve
safety system
hydraulic crawler excavator
Model Unit BYLKMINI BYLK45 BYLK50 BYLK60 BYLK70 BYLK90 BYLK100
BYLK55 BYLK65 BYLK80 BYLK110
Overall Length Mm 388 534-545 600 765 924-944 983-1050 1006-1173
Overall Height Mm 246 307 310 388 492 574 558-610
Overall Width Mm 175 258-263 270-280 353-436 449-483 543-568 606-663
Pin to Pin Center Distance Mm 80-150 230-270 290-360 380-420 460-480 473-540 550-620
Forearm Open Width Mm 80-140 155-170 180-200 232-315 306-340 375-411 416-469
Retractable Distance of Oil Cylinder Mm 170-206 205-275 340-450 340-486 256-390 413-590 520-590
Top to Bottom Pin Distance Mm 159 195 195 220 275 300 360
Pin Diameter Mm 25-40 45-50 50-55 60-70 70-80 80-90 90-120
Weight Kg 25 50-60 80 120-130 280-290 420-430 450-580
Working Pressure Kg/cm2 40-380 40-380 40-380 40-380 40-380 40-380 40-380
Required Oil Flow L/min 10-20 10-20 10-20 10-20 10-20 10-20 10-20
Suitable Excavator Ton 1.5-4 4-7 5-8 9-19 17-23 23-30 33-45
