US Resin - Model SS -Exchange Service Softener

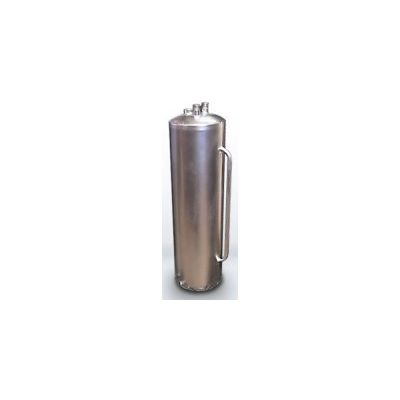

The SS-Model Softener is compact and portable. It is s down-flow design with no moving parts. The tank is constructed of T-304 stainless steel of low carbon content with heli-arc welded top and bottom and fusion seam-welded shell. The top has three openings: one 1 1/2” threaded hole for filling the tanks and two 1” threaded holes in the top of the inlet and outlet tank connectors.
The complete SS-Model assembly includes: two 1” tank connectors; two plastic distributors* - one short (inlet), on long (outlet); with outlet distributor seal rings; two distributor springs; two 1” plugs with “O” rings; one 1 1/2” plug with “O” ring; two 3/4” yoke assemblies with “O” rings.
*Stainless Steel distributors (short and long) are available for hot water applications.
- ¾” or 1” Full flow tank connectors
- Heavy-duty construction
- Stainless steel construction
- “O” ring seals
- High flow rate
- Compact
- Quick disconnect fittings
- Bar on side for easy handling
