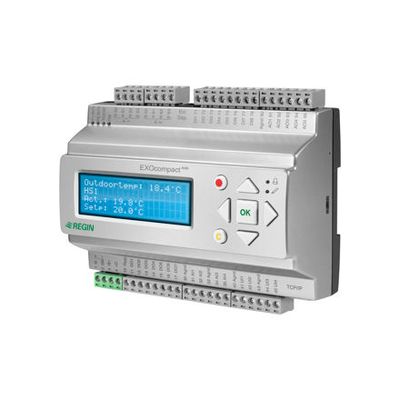

EXOcompactModel XCA152DW-4 -Small and Compact Controller

SHARE

Small and compact controller with different types of communication, with or without built-in display. EXOcompact Ardo is equipped with various communication ports. Therefore it can either act as a stand-alone unit or be integrated with Arrigo BMS or other SCADA systems. User-friendly tools are available for flexible handling and easy access via the web server.

Most popular related searches
  • Dimensions, external (WxHxD): 149*121*58 mm
  • Display type: Backlit, LCD, 4*20 char
  • Supported protocols: EXOline, Modbus, BACnet, EFX
  • RS485 ports: 1
  • Ethernet ports: 1
  • M-Bus ports: 0
  • Display ports: 1
    • AI: 4
    • UI: 0
    • DI: 4
    • CI: 0
    • AO: 3
    • DO: 4

Specifications for EXOcompact Ardo freely programmable controllers

  • Power Supply: 24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 4.0 VA
  • Battery life time: 5 years
  • Protection class: IP20
  • Ambient humidity (non-condensing): 0…95 % RH
  • Ambient temp: 0…50 °C
  • Storage temp: -20…70 °C
  • Mounting: DIN-rail
  • Casing: Euro Norm
  • Weight, incl. packaging: 0.4 kg
  • Terminal block width: 5 mm
  • Terminal type: Screw Terminal
  • Deteachable terminal: Yes
  • Terminal wire size: 1.5 mm²
  • Material, housing: Polycarbonate
