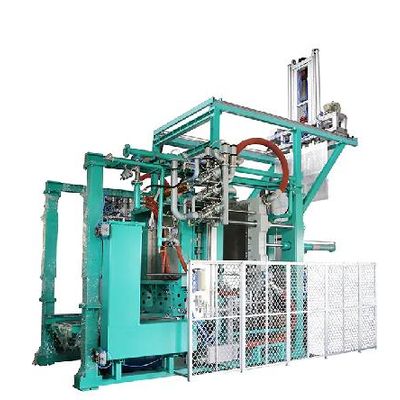

Epsole - Model SMED Series -Expandable Poly Styrene (EPS) Shape Moulding Machine
Stainless steel steam chamber equipped on machine: Save mold frame cost, steaming from 3 sides (top & two flanks), fast fusion (especially good for package product as of better cross steaming)and rapid cooling.
Most popular related searches
Hydraulic lock system: Adopts new hydraulic-mechanical lock system;
One key to change the mould, open framework design,advanced auto rod guide and fix system. Greatly reduces machine stop period, truly realizes SMED. Mould change time<5min;
Robotic arm products feeding & picking system:
- I.Pre-prepare transfer materials for multi-layers steaming (Eg:Structure products & under floor board with HIPS film coating, or plastic inserts for ICF)
- II.Collect & stack products
- Adopts famous brands hydraulic components, differential pressure system design, which can achieve high speed, low noise operation. The fastest mold opening and closing speed reaches 350mm/sec, achieving high speed and efficient stable operation;
- Two-points mold opening and closing, and the latest mechanism technology of mold damping, can stabilize mold clamping pressure without leakage during production, and effectively reduce energy consumption.
- Improved pipe & valve design to minimize energy wastage while increasing reaction speed;
