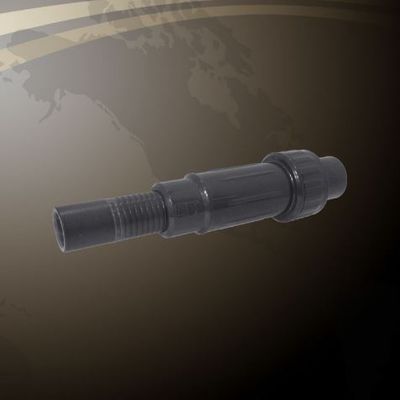

LD Valve - Model LD-879 -Expansion Coupling
Fast, easy, leak proof way to repair broken pipe. Makes restoring a broken pipe simple. Double O-ring seal for added protection against leakage. Can be used as a union for piping installations.
Most popular related searches
Working Pressure
- From 1/2"DN15 (20mm) up to 2"DN50 (63mm)
- 235PSI@73°F
- PN16BAR@22°C
- From 2-1/2"DN65 (75mm) up to 4"DN100 (110mm)
- 150PSI@73°F
- PN10BAR@22°C
Materials
- Body: UPVC, CPVC, PP, GRPP
- Gasket: EPDM, FPM, NBR
- Color: DARK GRAY, WHITE
Standards
- Socket: ANSI, BS, DIN, ISO, JIS, NTP
- Thread: NPT, NPS, BSPT, BSP
TYPE OF CONNECTIONS
If screen is smaller than the table, scroll right for more
TYPE COMBINATIONS
- Female socket x Spigot
- Female socket x Male thread
- Female socket x Female socket
- Female socket x Femlae thread
