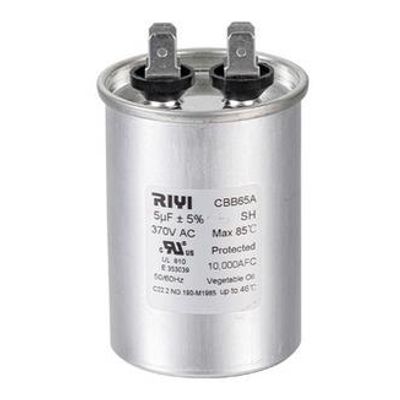

Cixi-Riyi - Model Cbb65 5uf 370v S2 UL -Explosion-Proof Aluminum Housing 2+2 Terminal Capacitor
The product has the characteristics of low loss, high insulation resistance, good self-healing, stable performance, impact current resistance, and strong overload capability. And there is an explosion-proof device inside, which has reliable safety performance and is suitable for air conditioner compressors, fully automatic washing machines, clothes dryers, etc. It is helpful to start and run the motor.
Most popular related searches
- Rated Voltage:200VA-500VAC
- Capacitance Range:5 -120nF
- Tangent of loss angle tan 5<0.2%(20°C,100Hz)
- Between Terminals:2.0Un/2s( No flashover or permanent breakdown)
- Highest allowable voltage:1.1 times of rated voltage
- Class of safety protection:S2
- Rated Frequency:50/60Hz
- Capacitance Tolerance:±5%
- Standing Voltage:
- Terminals to case:>2100VAC/2s(No dielectric breakdown orflashover]
- Maximum allowable circuit:1.3times of rated circuit
- Executing Standards:IEC60252. EN60252, GB/T 3667.1. UL810
