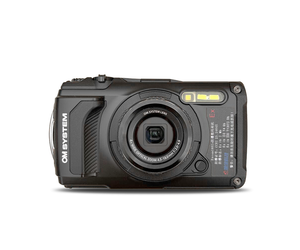

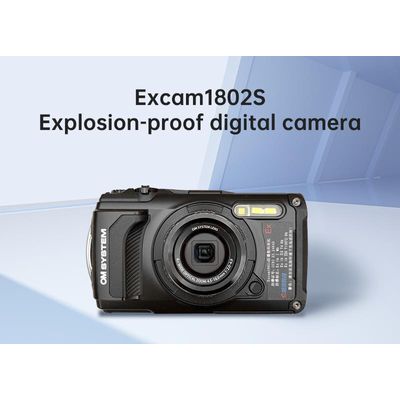

XUXIN - Model Excam1802s -Explosion Proof Digital Cameras Manufacturer and Supplier in China

1) With a total pixel count of approximately 12.7 million pixels and an effective pixel count of 12 million pixels, it is able to capture delicate and clear images.

2) Supports multiple frame ratios, including 4:3, 3:2, 16:9, 1:1, 3:4, etc.

3) The lens structure consists of 7 groups of 9 lenses, with a focal length range of 4.5mm-18.0mm (equivalent to 35mm), and supports 4x optical zoom.

4) The maximum aperture value is f/2.0 (wide-angle end) - f/4.9 (telephoto end), which can be adjusted according to different shooting scenes and needs.

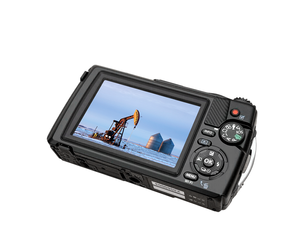

5) The display screen is a 3.0-inch color LCD, supporting ± 7 levels of brightness control, making it convenient to view the shooting effect under different lighting conditions.

Explosion proof mark
Ex ib I Mb；Ex ib IIC T4 Gb；Ex ib IIIC T130℃ Db
Aspect ratio
4:3、3:2、16:9、1:1、3:4
Number of pixels
Effective pixel count: 12 million pixels

Total number of pixels: approximately 12.7 million pixels
Shooting range (from the end of the lens)
The entire zoom range: 0.1m - infinity (super macro: less than f=5.4mm, from 0.1m to 0.3m/greater than 5.4mm, from 0.01m to 0.3m/microscope: 0.01m-0.30m)
Panel type
3.0-inch color LCD
Brightness control
± 7 gears
Shutter speed
1/2 to 1/2000 seconds (night view, automatic mode: no more than four seconds)
Record format
DCF2.0、Exif2.3
File format
RAW (12 bit lossless compression), JPEG, RAW+JPEG
Image size
[RAW] 4000*3000
Image mode
[JPEG] 4000*3000-1280*960
Grayscale
Automatic enhancement, vibrant, natural, elegant, portrait, single tone, custom, perfect portrait and artistic filters
Record format
MOV(MPEG-4AVC/H.264)
Delayed Video
[MOV]

3840*2160(4K)/5fps

1920*1080(FHD)/5fps,10fps,15fps

1280*720(HD)/5fps,10fps,15fps,30fps
High speed video
1920 * 1080 (FHD)/120fps, shooting time of 20 seconds

1280 * 720 (HD)/240fps, shooting time of 20 seconds

640 * 360 (SD)/480fps, shooting time of 20 seconds
Storage Medium
SD card, SDHC card, SDMC card
Sound recording
support
WI-FI function
support
Remote controller interface
USB (micro-B)
HDMI interface
Micro HDMI (Class D)
Computer interface
High speed USB 2.0
DC interface
USB Mini B
Playback function
support
Image editing
support
Flash lamp
support
Focusing
support
Language
Supports multiple languages
Accelerometer
support
Temperature sensor
support
Pressure gauge
support
Compass
support
Intrinsic safety battery capacity
1100mAh
Work Environment
Relative humidity
≤95％(25℃)
Atmospheric pressure
80 kPa～106kPa
Storage temperature
-40℃～+60℃
Applicable places
Can be used in Zone 1 and Zone 2, Class IIA, IIB, IIC gas environments, and can also be used in combustible dust environments.
Protection level
IP68
Size
113 mm × 66mm × 32.4mm (based on CIPA standards, excluding protruding parts)
Weight
Approximately 253g (including battery and memory card, based on CIPA standards)
