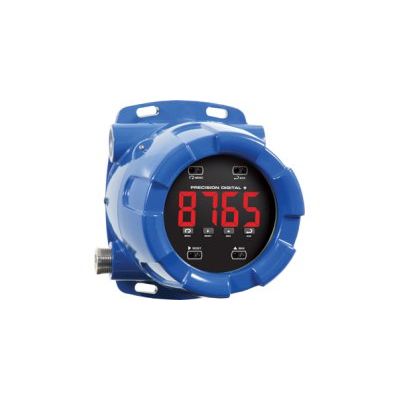

ProtEX-MAX - Model PD8-765 -Explosion-Proof Process and Temperature Meter

The ProtEX-MAX PD8-765 makes one of the most versatile digital panel meters on the market better by integrating it into an explosion-proof display with world-wide approvals. PD8-765`s has a huge 1.2 ̎ sunlight readable display that is visible from over 30 feet. It can be be field programmed to accept voltage (0-5V, 1-5V, etc) and current (4-20 mA) inputs, 100 Ω RTDs, and the four most common thermocouples; J, K, T, or E. Two power options allow for 85 to 265 VAC or 12-36 VDC input power. High voltage powered models include a 24 VDC transmitter power supply option to power the transmitter if needed. Other options include up to 2 relays and a 4-20 mA analog output. RS-485 serial communications is standard, and can be used for Modbus® communications or with MeterView software for programming or data logging up to 100 meters.
