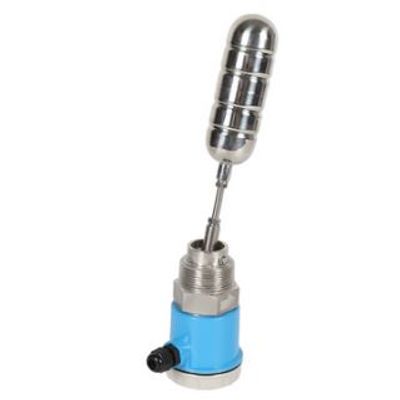

Sentec - Model SEM225 -Explosion-Proof Side Mounted Float Level Switch
SFLS300 series side mounted floating ball liquid level switch is based on the liquid buoyancy principle. When the floating ball moves up and down due to the buoyancy, the magnetic spring switch in the junction box is affected by the arm end magnet, and the "no" and "NC" contacts are exchanged. The same principle is applied to the microswitch device. The magnet in front of the microswitch.
SFLS300 series side mounted floating ball liquid level switch is based on the liquid buoyancy principle. When the floating ball moves up and down due to the buoyancy, the magnetic spring switch in the junction box is affected by the arm end magnet, and the "no" and "NC" contacts are exchanged. The same principle is applied to the microswitch device. The magnet in front of the microswitch and the magnet at the arm end push the microswitch, resulting in "no" and "NC" actions.
- "Microswitch" or "magnetic spring switch" can be selected. The operating temperature is below 100 ℃
- SUS304, PP and SUS316 can be selected for liquid connection part, and explosion-proof type (except PP) can also meet the requirements
- A variety of floating ball specifications, can be applied to a variety of different specific gravity liquid
- Multi material and multiple connection modes can meet the needs of different environments
- Long working life, the control part is completely isolated from the probe, high temperature and high pressure resistance
- Simple structure, stable and reliable performance, convenient installation
