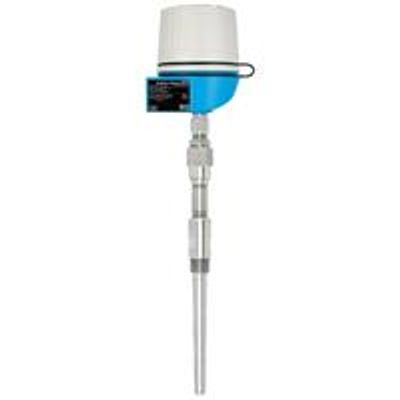

Omnigrad - Model S TC66 -Explosion-proof TC Thermometer
Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry. The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. Harsh environments, corrosive substances and highest pressures can be handled by the use of robust protection tubes and special materials. An optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors.
-
Types of protection for use in hazardous locations: Intrinsic safety (Ex i.a.), flameproof (Ex d), non-sparking (Ex nA)
-
High degree of insert compatibility and design as per DIN 43772
-
Extension neck to protect the head transmitter from overheating
-
High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
-
Heavy duty applications
-
Oil & Gas processing industry
-
Measuring range: –40 to 1 100 °C (–40 to 2 012 °F)
-
Static pressure range up to 100 bar (1450 psi)
-
Protection class: IP68
-
Measuring principle
Thermocouple
-
Characteristic / Application
US style
modular temperature assembly
for heavy duty applications
suitable for hazardous areas
with neck
incl. thermowell / protection tube (metal) -
Terminal head
TA21H – aluminium – screw cover w. chain
TA21H – stainless steel – screw cover w. chain
TA30H – aluminium – w. or w/o. display
TA30H – aluminium – one or two cable entries NPT1/2", NPT3/4", M20x1.5 -
Thermowell / protection tube
bar stock (drilled)
-
Insert / probe
mineral insulated (MI), flexible
-
Outer diameter protection tube / Insert
20 mm (0,79")
24 mm (0,94")
25 mm (0,98") -
Max. immersion length on request
up to 5.000,00 mm (196,85``)
-
Material protection tube/ thermowell
1.4401 (316)
1.4404 (316L)
1.4571 (316Ti)
Alloy C276
Alloy 400 -
Optional coating
Not defined
-
Process connection
male thread:
NPT3/4"
NPT1"
flange:
ASME 1" 150 RF (B16.5)
ASME 1" 300 RF (B16.5)
ASME 1" 600 RF (B16.5)
ASME 1,5" 150 RF (B16.5)
ASME 1,5" 300 RF (B16.5)
ASME 1,5" 600 RF (B16.5)
ASME 2" 300 RF (B16.5)
ASME 2" 600 RF (B16.5) -
Tip shape
straight
tapered -
Surface roughness Ra
1,6 μm (63,0 μin.)
-
Operating temperature range
Type K:
-40 °C ...1.100 °C
(-40 °F ...2.012 °F)
Type J:
-200 °C ...750 °C
(-328 °F ...1.382 °F) -
Max. process pressure (static)
at 20 °C: 500 bar (7.252 psi)
-
Accuracy
class 1 acc. to IEC 60584
-
Response time
depending on configuration
t50 = 3 s
t90 = 7 s -
Integration head transmitter
yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
-
Ex - approvals
ATEX II
IECEx
NEPSI
EAC Ex
Explosion proof -
Certification
Gost Metrology
SIL (transmitter only)
