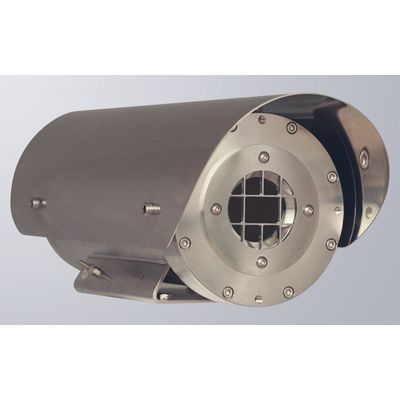

SeSys - Explosion Proof Thermal Radiometry Camera
This explosion proof thermal radiometry camera includes technology to monitor movement as well as temperature, and identify potential hazards in total darkness. With up to 20 definable zones within the image area, each with independently configured above- or below temperature thresholds this ultra-sensitive camera is ideal for process monitoring or pre-smoke fire detection.
The calibrated thermal sensor can trigger an alarm based on the temperature of an area of interest, making this camera particularly suited to asset management and perimeter monitoring.
An ultra-sensitive sensor measures the temperature range across the entire image area down to a single pixel accuracy. This temperature sensitivity is also useful for detecting moving objects, with the camera`s built-in analytics capable of tracking movement of an object and generating alarms accordingly.
Boasting encrypted edge recording and use of all IoT camera functions, this camera is crucial for monitoring of machines and storage facilities and ideal for optimizing your fire protection by detecting a fire source before a fire breaks out.
SeSys’s ATEX and IECEx compliant digital cameras are designed to facilitate remote monitoring of inhospitable, hazardous or explosive areas reducing the dangers posed to personnel. Light sensitive, high-resolution sensors make these IP-based cameras perfect for operational, health and safety and security requirements.
Thermal Explosion-Proof Camera For Indoor and Outdoor use
Detect or register objects and environment using a thermal signature
Modular System For Maximum Flexibility
Exchangable lens with horizontal image angles from 15° to 45°
Minimum Installation Requirement
Single cable for camera data and power
Reduced Energy Costs
Power consumption < 7 Watt, standard PoE IEEE 802.3af
Virtually Maintenance-Free
No moving parts reduces camera maintenance and down-time
Precision Accuracy
Detection of up to 20 zones within the image and down to single pixel accuracy
Superior Sensitivity
Superior sensor sensitivity NETD <50 mK
Scaled Resolution
Thermal sensor resolution 336 x 252 Pixels (thermal image scaled up to 6MP)
Thermal Radiometry
The Thermal Radiometry (TR) sensor will be able to generate automatic alarms, defined by temperature limits or temperature ranges, which is vital to detect potential fire, heat sources or even cooling.
Multi-Compatability
H.264 and ONVIF compatibility
Encryption
Encrypted recording on an internal MicroSD card
Low Power
Power consumption is an industry-leading <10W
Power Over Ethernet
Powered by PoE, which keeps installation and commissioning minimal and cost effective
Weather Proof
Robust and weatherproof stainless steel housing
Long Lasting
No moving parts ensuring low power, low maintenance and a long-lasting camera system
- Oil and Gas
- Process Control
