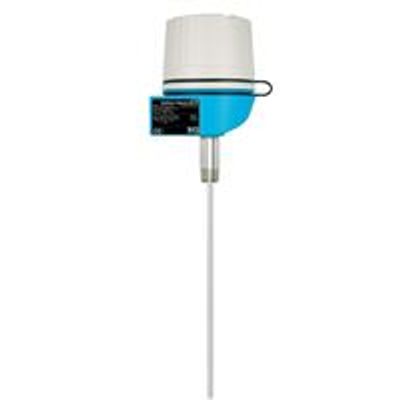

Omnigrad - Model S TC62 -Explosion-Proof Thermocouple Thermometer

FromEndress+Hauser Group Services AG

SHARE

Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry. The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. The sensor is designed for use in a separate thermowell. An optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. The modular design with a variety of options can be adapted to the measurement task.

Most popular related searches

intrinsic safety

temperature monitoring

thermocouple thermometer

hazardous area safety

process temperature monitoring

industrial process monitoring

Types of protection for use in hazardous locations: Intrinsic safety (Ex ia), flameproof (Ex d), non-sparking (Ex nA)
High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
High degree of insert compatibility and design as per DIN 43772
Extension neck, nipple union version, to protect the head transmitter from overheating

Heavy duty applications
Oil & Gas processing industry
Measuring range: –40 to 1 100 °C (–40 to 2 012 °F)
Protection class: IP68

Measuring principle

Thermocouple
Characteristic / Application

US style

modular temperature assembly

for heavy duty applications

suitable for hazardous areas

threaded process connection

with neck

to use with thermowell
Terminal head

TA21H – aluminium – screw cover w. chain

TA21H – stainless steel – screw cover w. chain

TA30H – aluminium – w. or w/o. display

TA30H – aluminium – one or two cable entries NPT1/2", NPT3/4", M20x1.5
Thermowell / protection tube

to use with thermowell
Insert / probe

replaceable (without process interruption)
Outer diameter protection tube / Insert

Insert Diameter

6,0 mm (0,24``)
Max. immersion length on request

up to 30.000,00 mm (1.181,10``)
Material protection tube/ thermowell

Not defined
Optional coating

Not defined
Process connection

male thread:

NPT1/2"
Tip shape

straight
Surface roughness Ra

0,8 μm (31,5 μin.)
Operating temperature range

Type K:

-40 °C ...1.100 °C

(-40 °F ...2.012 °F)

Type J:

-40 °C ...750 °C

(-40 °F ...1.382 °F)
Max. process pressure (static)

at 20 °C: 500 bar (7.252 psi)
Accuracy

class 1 acc. to IEC 60584
Response time

depending on configuration

t50 = 3 s

t90 = 7 s
Integration head transmitter

yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
Ex - approvals

ATEX II

IECEx

NEPSI

EAC Ex

Explosion proof
Certification

Gost Metrology

SIL (transmitter only)
