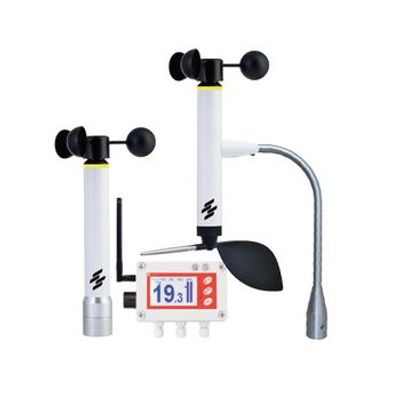

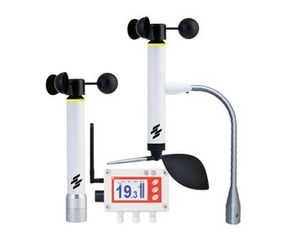

Scarlet - Model WS-E10 / WSD-E11 -Explosion Proof Wireless Anemometer
Scarlet's long range wireless explosion proof anemometer series provide two reliable solutions for hazardous area, WS-E10 (Explosion-proof wind speed meter) and WSD-E11 (Explosion proof wind speed & direction meter). Both adopt state-of-art wireless technology and obtain ATEX and IECEX certification. Scarlet WS-E10/WSD-E11 with high-end design and intrinsically safe feature, make it the ultimate solution to improve worksite safety. Unlike the existing explosion proof anemometers in the market, Scarlet WS-E10/WSD-E11 stands out for its wireless technology. Operators can monitor the wind condition in safe distance without cable connection. Integration with your own safety system is also feasible via 4-20mA industrial output. Optional bluetooth connectivity allows users to monitor wind condition in real time on their smartphones by using Scarlet WindSmart App. With all these unique features, Scarlet aims to improve operation safety in all kinds of harsh environment.Explosion-Proof
World’s first ATEX approved intrinsically safe wireless anemometer state-of-art wind monitoring solutions in Zone 1 & Zone 2 hazardous environments.
Cable Free
Transmission distance up to 1,300 meters (4,000 ft) by using state-of-art and market-proven wireless modules. Avoid possible risks from machine operation.
Easy Installation
User-friendly interface. Three different alarm set points integrating into your system. Free smartphone Apps with external devices connectivity.
Reliability
IP 67 rugged waterproof wind sensors durable to all kinds harsh environments. 3-year sensor battery life and one-year warranty with free replacement.
To use Scarlet’s WS-E10/WSD-E11 safely in your work environment according to OSHA and other explosion protection regulations, you must follow the noted instructions while using the device.

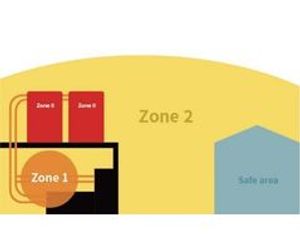

The sensor part of the wireless anemometer can be installed in hazardous area Zone 1/2, however, to protect the user’s and workplace safety, the receiver or so called monitor can only be used in non-hazardous area. Also, it is recommended to have approved intrinsic safety barriers between hazardous area and non-hazardous area with control equipments.
ATEX Certified EX II 2 G EX ib IIB T4 Intrinsically Safe for Zone 1 & 2 Hazardous Sites
We adopt innovative low-power consumption wireless technology on wind sensors. The 3-year long battery life reduces your maintenance cost significantly. Moreover, Scarlet’s WS-E10/WSD-E11 with its water-proof and Explosion-proof features make it capable to hold up to all extreme environment.
Our device are certified as EX II G EX ib T4 by ATEX and IECEx approvals for use in hazardous areas zone 1 and zone 2. User can monitor the wind situation in safe distance from non hazardous area to eliminate any potential danger. Together, we make you and your worksite safe and sound.
Wireless transmission distance up to 1,300 meters. Easy-to-use solution for wind site evaluation in remote supervision. With three different active warning & alarm set points, users can customize their own alarm system.
Scarlet explosion-proof wireless anemometer allows external devices connectivity. Based on the preset values, the receiver can trigger local alarms such as LED lights and buzzer, or trigger external indication via 3 built-in relays when measured wind speeds exceeding the threshold. Scarlet aims to let you manage your workplace not only safe but smart.
- Long range transmission distance up to 400 meters/ 1,300 meters (XB model)
- Built-in 90dB audible alarm
- Up to 3 years sensor battery life
- Backlit graphical LCD with large digits
- Bluetooth 4.0 Smartphone Connectivity with Free iOS & Android App
- 4 programmable alarm relay outputs & 4-20mA outputs
- Active Warning with LED lights
- Replaceable wind cups and vanes
- ATEX Explosion-proof Level: EX II 2 G EX ib IIB T4
- Wind Speed Measurement Range: 0.3…50 m/s
- Wind Speed Accuracy: +/- 3 %
- Wind Speed Resolution: 0.1 m/s
- Units of Measurement: m/s, km/h, knots, mph, Bf
- Wind Direction Measurement Range: 0-360° ,no blank sector, contactless magnetic measuring principle
- Temperature Measurement Range: -30…55°C
- Temperature Resolution: 0.5 °C
- Dimensions - Sensor: height 210 mm; diameter(cup to cup) 120 mm
- Dimensions - Receiver: 150 x 80 x 55 mm
- Operating voltage: 12...24 V DC
- Antenna input (receiver): 50 ohm, SMA connector
- Data transmission: every 2 seconds
- Measurement interval: 2 seconds
- Transmission frequency: 868 MHz/ +10 dBm(standard); 908 MHz, 922 MHz (customizable)
- Sensor battery: 3.6V AA Lithium battery, Type: LS14500EX, Brand: SAFT
- Audible alarm: 85...90 dB
- Relay Contacts Output: 4 x relays, 2 A / 24 V
- 4-20 mA Output: 4 mA=0 m/s, 20 mA=10...50 m/s (programmable)
- Bluetooth LE: Optional. Range up to 40m
- Mounting: Optional Accessary Self-Leveling Mounting Bracket
- Mining: Underground coal mines, methane mines, rescue staff, ventilation control & monitoring.
- Offshore: Chemical plants, refineries, gas stations, oil tankers, pipelines, offshore sites, shipyard, etc.
- Hazardous and Explosive Area: Environments where significant quantities of flammable liquids, vapor and combustible dusts could cause fire or explosion.
