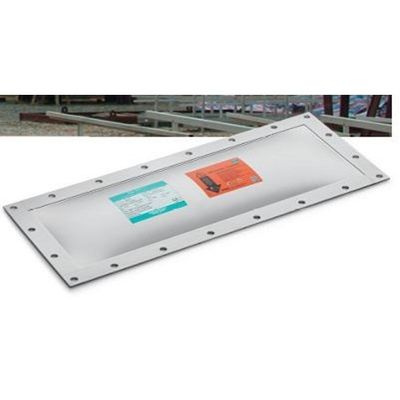

REMBE - Model EDP -Explosion Venting System

SHARE

The domed, single layer explosion vent is suitable for use in processes with medium vacuum or overpressure (up to 70 % of min. response pressure (pstat)) and slight pressure cycling. It is particularly suitable for vessels with pneumatic filling equipment and for filters and sieves with strong vibration. The standard bursting pressure is 0.1 bar at 22 °C (71.6 °F).

Most popular related searches

explosion venting

operating permit

The domed construction provides high stability and pressure cycling resistance.
Quick and easy installation while torque is independent. No additional counter frame required.
Significant space savings due to the integrated gasket and tensioning frame in the explosion vent.

Standard burst pressure Pstat : 0.1 bar at 22 °C (71.6 °F)
Max. permitted operating pressure : Up to 70 % of Pstat
Temperature : − 40 to + 180 °C (− 40 to + 356 °F)
Material : Stainless steel
Gasket material : EPDM, silicon, foam rubber
Tolerance : ± 20 % at standard burst pressure
Standard vacuum resistance :
Up to 500 mm HO (WC) to 0.64 m²
Up to 300 mm HO (WC) from 0.65 m²
Recommended tightening torque for M10 bolt : 15 – 20 Nm
