Bieler + Lang - Model HC 100-T & HC 100-K -Explosive Gas Detector

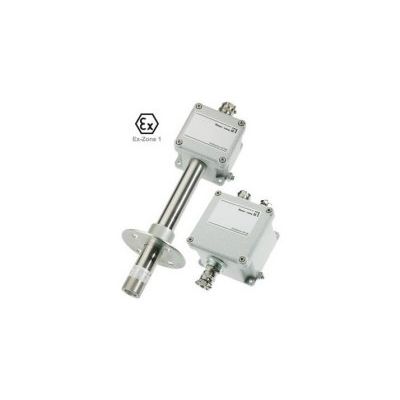

The combination of the ExDetector HC 100-T and HC 100-K was specially designed for installation in ducts and features a remote transmitter. This special combination is used to measure the current concentration of explosive gases and vapors in a pipe network. The HC 100-K measures combustible gases and vapors within a range of 0 %-100 % LEL. It uses the principle of catalytic combustion (heat of reaction), which allows it to monitor many different gases such as hydrogen and hydrocarbons. The combination of the ExDetector HC 100-T and HC 100-K can be used in explosion zone 1 and SIL-1 safety systems. The measuring function is type-tested in accordance with Directive 94/9/EC.
