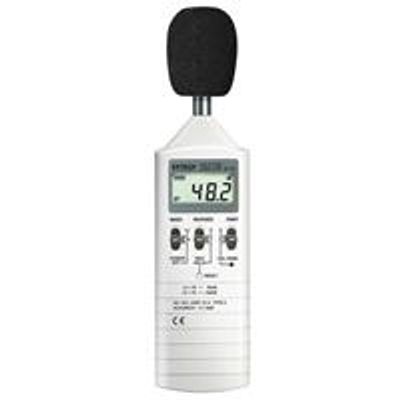

Extech - Model 407736 - Dual Range Sound Level Meter
From Inspection Tools & Equipment - Sound Meters and Dosimeters
Sound level meter with ±1.5dB accuracy meets Type 2 standards. This Sound Level Meter measures from 35 to 130dB with a 1.5dB accuracy and meets ANSI and IEC Type 2 standards. It features fast/slow response time, A/C Weighting, Max Hold, and analog AC/DC output for connection to an analyzer or recorder. Comes complete with microphone wind screen, 9-Volt battery, and carrying case.
-
Most popular related searches
Features:
- Provides 1.5dB accuracy
- Meets ANSI and IEC 651 Type 2 standards
- Two measuring ranges: 35 to 90dB (Low) and 75 to 130dB (High)
- Max Hold with reset button
- Built-in calibration check (94dB)
- Analog AC/DC outputs for connection to an analyzer or recorder
- Tripod mount ideal for field use
Specifications
- Sound Range (dB) : Low: 35 to 90dB; High: 75 to 130dB
- Basic Accuracy : ±1.5dB (Type 2)
- Weighting (A&C) : Yes
- Response Time (Fast/Slow) : Yes
- Condenser Microphone : 0.5' (12.7mm)
- Analog Output : AC/DC
- Dimensions : 9.5x2.7x1' (241x69x25mm)
- Weight : 7.6oz (215g)
Downloads related to this product
Extech - Model 407736 - Dual Range Sound Level Meter - Datasheet
