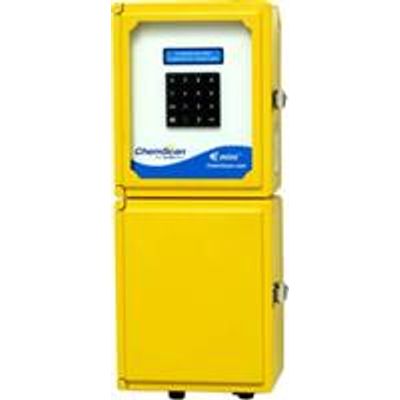

ChemScan - Model mini oP XR -Extended Range Ortho-Phosphate Analyzer
FromIn-Situ Process
The single parameter in-line analyzer utilizes years of ChemScan® experience and proven technology to provide reliable and accurate analysis of water and waste water. This device has been designed from the ground up to reduce maintenance requirements, includes large ID sample tubing to minimize plugging and only needs quarterly reagent refills.
Most popular related searches
automatic analysis
drinking water
sample handling
sampling tube
phosphate analyzer
phosphate analysis
effluent water
EPA method
field sampling
total suspended particulate solids
- High Reliability
- Low Capital Cost
- High Accuracy
- Low Operating Cost
- EPA Recognized Analysis Method
- Potable Water
- Waste Water Effluent
- Automatic Analysis Utilizing ChemScan`s Proven VMo Method
- Low Maintenance
- Proven Sample Handling with Large I.D. Flow Paths
- Simple Field Adjustable Calibration
- Sample Blank to Eliminate Backgound Interference
- Automatic Cleaning
- Automatic Analysis
- Continuous Output
- Multiple Data Communication Interface Options
- Ortho-Phosphate
Range (as P):
0.1 - 20.0 mg/L (Method 1069)
Range (as PO4):
0.3 - 60.0 mg/L (Method 1070)
Accuracy:
2% of value or 2x detection limit (whichever greater)
Cycle Time:
5 minutes to 9999 minutes (field programmable)
Environment:
5 - 50 degrees C (method dependent)
Power:
100 - 240 VAC, 50 W
Enclosure:
NEMA 4x
Safety Approval:
CSA-US
Sample Requirements:
0.5 - 1 Liter/analysis, pressure 2 ft to 10 psi,
<150 mg/L TSS, <60 NTU
Maintenance:
Reagent replacement every 3 months, pump kit yearly
Relay Contacts:
1 SPDT Concentration, 1 SPDT Programmable
Serial Interface:
Serial, RS-232 Maintenance Port
Analog Output:
Isolated 4-20 mA
