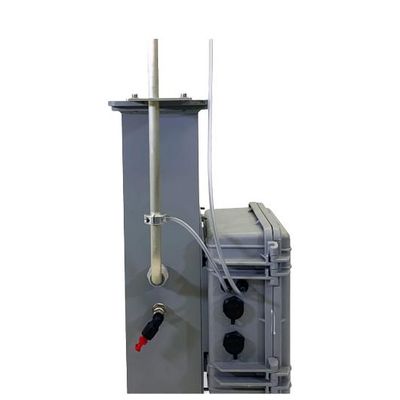

AirPhoton - Model IN102Ex -Extended Range Size Scanning Nephelometer
The IN102Ex Size Scanning Nephelometer extends the capabilities of our IN102 nephelometer aerosol to sample in the range from PM1 size bin to PM10. The additional range of the measurements allows us to derive the full particle size distribution, making this model unique for scientific research. We use the same feedback flow control system as described above for the IN102.
It is recommended for high precision measurements for various size cut-offs under all conditions for air quality & health and climate applications. The enhanced capabilities of the IN102Ex provide researchers with more detailed and precise data, which is crucial for advanced research in these domains. We are very proud of this advancement, demonstrating the capability of our IN102 Extended range nephelometer to retrieve a full aerosol size distribution.
It is designed for robust operation under a wide range of conditions. While its rugged design allows for field deployment, it is also a highly sensitive instrument which can be used in the laboratory or modified for use in aircraft. In this regard, the IN101T is highly versatile and can work in different environments and for different purposes.
The IN101T is recommended to use for measurements of all particle sizes at normal ambient conditions as well as for situations where higher pressure intake is required – i.e. high altitudes, clean condition or longinlettubes.
- Dimensions: 9″ x 10″ x 24”
- Mass: 6.8 Kg
- Operating temperature: -30 to +45oC
- Wavelengths: 450, 532, and 632 nm
- Angular range: 7 to 90o ; 90 to1 70o
- Full scattering = forward + back scattering
- Standard range: 0.0-3,000Mm-1
- Extended range: 20,000Mm-1 (upon request)
- Lower detectable limit: <0.15 Mm-1 (at 60 sec AVG); < 0.06 Mm-1 for Backscattering (60 sec AVG)
- Clean air reference option provides automatic zero for span calibration
- Data Interfaces: 4GB SD card, RS485 (optional)
- The IN102Ex provides forward and back scatter measurements, three wavelenghts, high-speed fan, feedback flow control system, multiple Size bins and also the unique ability to determine size distribution.
- We suggest the IN102Ex in high precision measurements for various size cut-offs under all conditions for air quality & health and climate applications with ability to obtain size distribution.
