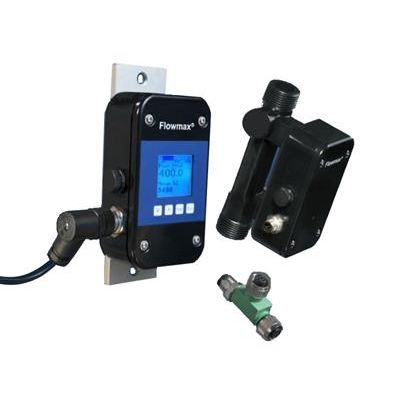

iCenta FlowCon - Model 200i -External Display and Programming Unit

If the installed Flowmax is difficult to reach or there is not a display, the configured Flowmax outputs retain their full functionality by using FlowCon. The output signals, e.g. analog, pulse or alarm output, are available for further processing by external systems such as PLCs, recorders or external counting units.

All the functions available in Flowmax as scale value for the analog output, pulse value, internal counter reset, etc. can be changed via the keypad in Flowmax. By using the supplied plug power supply and the Y/T-plug the device combination FlowCon / Flowmax can be operated independently from the power supply of the plant.

• Compact design
• Back-lit digital display
• Wall-mounting

Features of the FlowCon 200i External Display include:

• Display unit for actual process parameters
• Back-lit display
• Independent voltage supply
• Wall-mounting
• Voltage supply of one Flowmax ultrasonic flow meter
• Access to all menu options and configuration
• Compact design

The FlowCon 200i is an external display and programming unit for use in combination with Flowmax ultrasonic flowmeters. FlowCon can be permanently installed as a separate display for Flowmax. Alternatively FlowCon serves as a mobile unit for commissioning.

Specification Detail of the FlowCon 200i External Display:

Display
LCD backlit digital display

Material
Body Electronics-housing made of PSU (Polysulfon)
Mounting plate made of aluminium (anodized)

Keypad
4 keys with pressure point

Data interface
Data interface for parameterize

Outputs & Comms
data interface 1 wire

Operating Temp Range
-10° …60°C

Protection class
IP65

Power
18…30VDC

Approvals
CE, EN 50081-2, and EN 50082-2.

Connection Type
5 pin plug
