Bergmann, Heinz, e.Kfm.- Machines for Waste Management
Bergmann - External Lift Tipping Device for Alpha Pack Bin

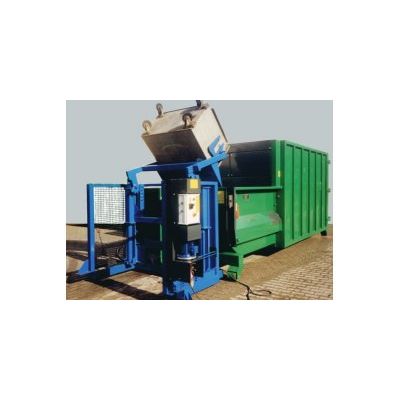

The BERGMANN lift-tipping-device is the ideal auxiliary equipment for existing large garbage bins. With its help, a local consolidation and emptying of existing normal bins can take place into larger bins, such as open containers, auger compactors or compaction boxes.
Most popular related searches
emergency stop buttons
waste container
large waste container
auger compactor
emergency stop
lifting device
waste containment
safety cage
compaction container
bin compactor
Hydraulic device for emptying small waste containers
- Secure and rapid emptying of small waste bins in containers or compaction boxes
- Can be used everywhere, where, in several places in the plant, materials accumulate, which are first collected in standardised small containers and then introduced to a central place

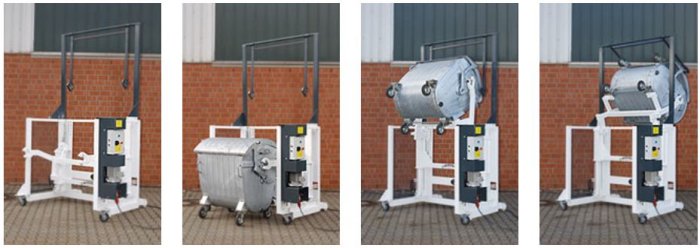

- Automatic lifting, opening of the cover and tipping of the container
- Bergmann HKV, connected to an existing electrical connection
- The waste bin, with up to 1,100-liter volume is pushed into the pick-up device
- By means of hydraulics, the container is lifted
- The integrated optional lid opener restrains the swinging lid and ensures complete emptying
- Central collection and emptying of all small waste bins
- Optionel emptying all existing small waste bins in BERGMANN compaction boxes, a further savings potential
- Adjustable due to brakeable heavy-duty roller
- Durable and low-maintenance by hydraulic drive
- Designed for intensive, continuous use.
- Proven worldwide for over 20 years with the highest quality standard
- High, fast and available for spare parts for many years, guaranteed for 15 years
- Worldwide service network
- Emptying of bins of up to 1,000 liters
- Flexible application due to a special construction which can be adjusted to different containers with various pivot and comb heights
- Distortion free and sturdy steel construction
- Application of highly wear-resistant storage in all pivotal points
- Movable by 4 heavy-duty rollers with stop brake
- Comb lifting system as supplementary equipment
- Lifting capacity approx. 700 kg
- Security by two-hand control, safety guard and emergency stop button
- quiet and hydraulic drive
- CE certified
- Completely “Made in Germany” by qualified and experienced staff
Standard Equipment
- Pivot take-upfor 1,100-liter containers
- Transport rollers
- Safety cage
- Two-hand control
- Emergency-stop button
Accessories
- Lid opener
- Comb lifting system
- … ask for special versions
On all large waste bins, such as
- open containers
- garbage compaction boxes
- Alpha-Pack-Bins
- Auger compactor
