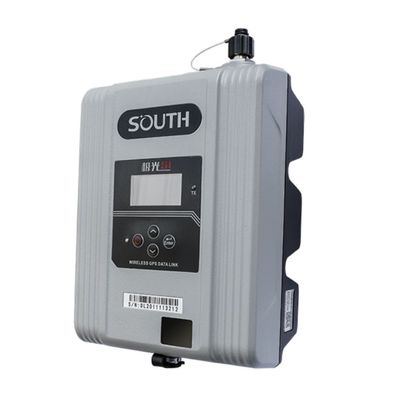

South -Â Model S1 -External UHF Radio
SOUTH S1 external UHF radio is an all new design of product for the field works. It supports SOUTH / Trimtalk protocols, 410 MHz to 470 MHz. Even in the field without a computer, the 1.54-inch LCD interface makes the configuration and troubleshooting possible and visualized. This radio features with rugged housing, better cooling fins, power control, flexible and convenient settings.
- Cooling control
The new design housing has more cooling fins to make the radio temperature cool down during the transmission, so that the radio can work properly
- Flexible band rate
S1 radio has a new air band rate 38400, to ensure the data flow is enough for muti-constellation, so that Rover will get stable corrections.
- Use define frequency
410MHz to 470MHz, you can set the frequency of each channel, to avoid the interference from other radio.
- Bluetooth control
We have Android app to configurate the radio functions (such as frequency, channel, protocol, power) through Bluetooth.
- 1.54-inch display
The S1 LCD display can show the configuration informations such as frequency, channel, protocol, power.
- Muti-protocol
S1 supports SOUTH/TrimTalk protocol, compatiable with different GNSS receivers.
- Power control
S1 has auto power control system, battery voltage warning.
