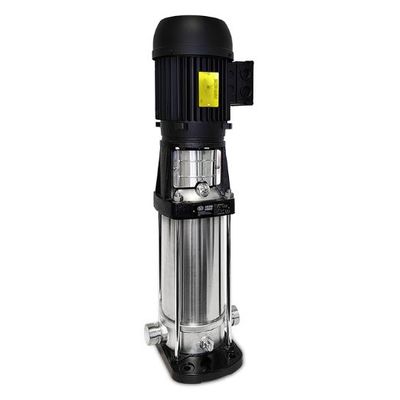

Sacemi - Model ME -External, Vertical, Non-Self-Priming Multistage Centrifugal Pumps
The ME pump range are external, vertical, non-self-priming multistage centrifugal pumps. The motor shaft is connected to the pump shaft via a coupling. The inlet and outlet are located at the bottom of the pump in the same plane.
Most popular related searches
self priming multistage centrifugal pump
multistage centrifugal pump
self-priming centrifugal pump
centrifugal pumping
centrifugal pump
industrial cleaning system
vertical multistage centrifugal pump
self-priming pump
corrosive liquid
industrial cleaning
ME pumps are available in the following materials:
- MEF with head and inlet/outlet chamber in cast iron and hydraulic parts in AISI 304
- MEX with head, inlet/outlet chamber and hydraulic parts in AISI 304
- MEN with AISI 316 head, inlet/outlet chamber and hydraulic parts
Hydraulic connections to the pump are available with round or oval flange, threaded or VICTAULIC system.
Working conditions
Non-explosive, clean liquid without solid grains and fibres; can be used for transporting water, aqueous cooling solutions and cutting lubricants. MEF
version can be used to transport non-corrosive liquids, while MEX and MEN versions are suitable for slightly corrosive liquids.
Liquid temperature:
- Normal: -15ºC ~ + 70ºC
- Hot water: -15ºC ~ + 120ºC
- ME pumps are used to convey various fluids, from tap water to industrial lubricants, and are used from irrigation to machine tools to industrial cleaning systems.
- They can be used at various temperatures, flow rates and pressures; in particular, they are applicable for lathes, grinders, machining centres, refrigeration
- equipment, industrial cleaning equipment, filtering systems, etc.
Attribute: Value
- Power 1 (kW): 0.37
- Power 2 (kW): 2,2
