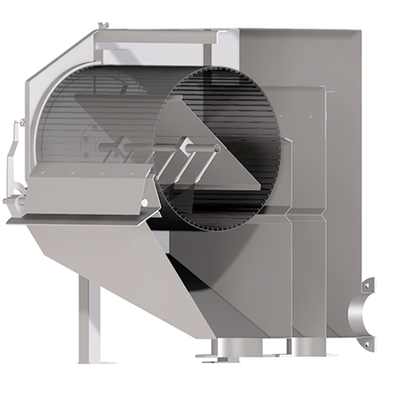

Colubris - Externally Fed Rotary Screen
The rotary screen is equipped with a special, exceptionally low speed, drive. The exceptionally slow rotation speed will maximize the retention time of the screenings on top of the drum. Any surges in water flow will be diverted back to the pump station via the screen’s overflow weir.
Wedge is widest on the inside, so slots block more difficult. Additionally, the wastewater passes the screen twice. At the first pass it leaves solids behind on the drum, in the second pass blockages are flushed.
Adjustable moisture content of the screeningsThe slower the screen rotates the longer water will seep from the screenings and the dryer the screenings will become.
Support structureCreates enough height to place a container below the screen.
Improved hygienic & prevents nuisanceBy adding a hinged cover it opens effortlessly as it includes a gas cylinder assisted swing-up opening.
Automatic spray cleaning systemCleans large surface area. The spray pipe is equipped with multiple high-pressure spray nozzles which is reliable and safe.
HygienicThe screening is guided by a chute during the fall into the deposit.
