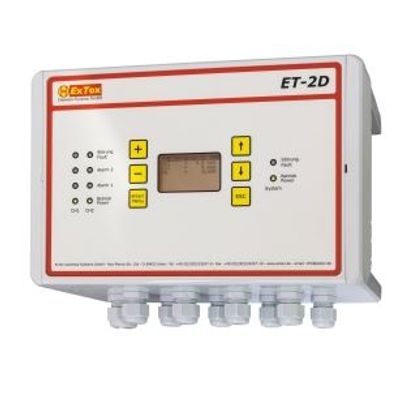

ExTox - Model ET-2D -Gas Warning Control Unit
Gas detection control unit for measurement of flammable and/or toxic gases as well as oxygen. Smoke detectors as option. Graphic display. Menu guided configuration. 2 Alarm levels per channel. 5 freely configurable relays.
Most popular related searches
gas detection control system
gas warning
gas warning system
gas controller
gas control
smoke detection system
gas detection system
gas detection control
gas detection controller
gas detection
All control units of the ET-Series could be used in combination with all ExTox Transmitters ExSens(-I) and Sens(-I)
Our control units in combination with the ExTox Transmitters comply with the requirements of EN 60079-29-1, EN 45544-1 to EN 45544-3 and EN 50104 for Gas Detection Systems. Furthermore are those in conformity to the European Directives 2014/34/EU (ATEX), 2014/30/EU (EMV), 2014/35/EU (LVD).
Number of Transmitters:
- 2 Gas Transmitters (4…20 mA)
- Line with up to 2 smoke detectors (Art. 297000)
Indication:
- Illuminated graphic display (Measured values, messages, user menu
- LED-indication for gas transmitters
· Pre- and main alarm (2 x 2 x red)
· Status of measuring channel: operation (2 x green), fault (2 x yellow)
· Status of control unit: operation (1 x green), fault (1 x yellow)
User Interface:
- Menu guided system via display and six push buttons
- Completely configurable at device, no tools needed
- Password protected
- Adjustment of measuring channels at control unit
- Maintenance mode to be activated via menu or digital input
Alarm Evaluation:
- 2 freely adjustable alarm levels per transmitterbr /> · rise above level
· fall below level - Latching of each alarm configurable
Relais, potentialfrei:
- 5 Change-over contacts 230 V / 4 A (total current ET-2D: max. 10 A)
· Freely configurable with alarms and fault messages
· Operation selectable: open circuit or closed-circuit principle
· Horn reset selectable: quit in spite of present message - 2 Change-over contacts 230 V / 4 A (total current ET-2D: max. 10 A)
· Fault of control unit
· Maintenance mode
Inputs:
- 2 Analogue inputs 4…20 mA for Transmitter
- 2 Digital inputs, 24 V DC, potential free (for smoke detectors)
Outputs:
- Extension A: 4…20 mA (not isolated)
- Interface RS232 or RS485/RS422 (configurable)
Electrical Features:
- Power Supply: 230 V AC or 24 V DC
- Power Consumption: max. 30 W
- Operation Temperature: -20 °C to +55 °C, Humidity: non condensing
- Storage Temperature: -25 °C to +60 °C, Humidity: non condensing
- Art.-Nr. 825023 ProfiBus-Modul mit Standardprotokoll
- ProfiNet-Modul mit Standardprotokoll
- ModBus-Modul mit Standardprotokoll
- Fernanzeige 4-Kanal (extern)
- Art.-Nr. 940439 Messung der Umgebungsbedingungen:
· Temperatur
· Relative Feuchte
· Absolutdruck
(kann ins Grundgerät integriert werden)
