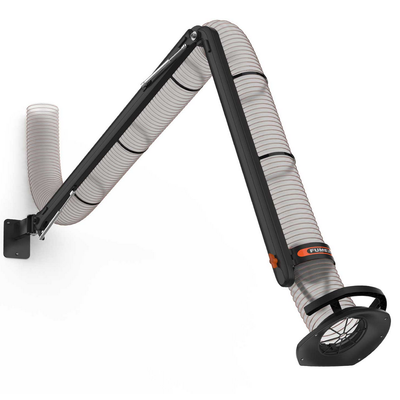

Fumex - Model PR EXC / EXD -Extraction Arm
FromFumex AB
Extraction arm for workplaces with requirements for safe handling of explosive gases and dust. The PR EXC/EXD has the same unique features and design as PR. The differences lays in the grounded structure and that PR EXC/EXD meet the requirements of the ATEX Directive 2014/34/EU Category 2 for gases and dust.
Most popular related searches
RX design is based on Fumex`s basic principles:
- External arm supports
- Natural and direct airflow means minimal pressure drop
- Low risk of blockage
- Hose dimension available: diameters 100, 125 or 160 mm
- Hose quality according to field application
- Supplied pre-assembled for ease of installation
- Standard
- Steel components powder coated dark blue and black
- PVC-coated polyamide fabric dark blue hose or available in black high-temperature hose made from neoprene
- Available in lengths of 1.5, 2, 3 and 4 m
- Standard wall mounting
- Optional ceiling, floor or bench mounting available
- Flat screen or dome hood
- Conical hood, with/without integral light
- Extension hose
- Hose available for aggressive chemical applications or other special requirements can be supplied upon request - contact Fumex
