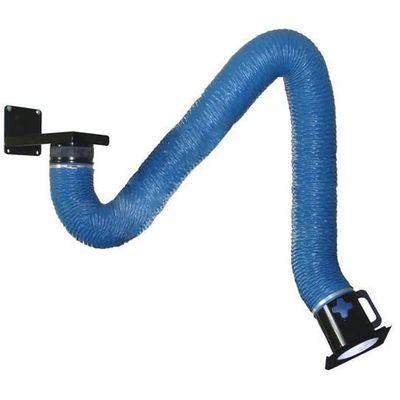

Lev-Co Flexi - Model 01-001 -Extraction Arms
FLEXI Extraction Arms are an excellent solution for capturing low flowing fumes and dust at their origin and expelling it safely away from users into the atmosphere. Available from 5`-17` total length. 6.5`` & 8`` diameter hose. Typical flowrate of 650 CFM on 6.5`` hose to 1000 CFM on 8`` hose. FLEXI Extraction Arms come "ready to install" straight from the package with a wall bracket.
FLEXI Extraction Arms are perfect to use in garages and repair shops as the arm allows you to directly cover sources of fumes, dust and gases at any angle due to the arms flexibility.
FLEXI Extraction Arms are also able to support hoses for higher temperature capture applications such as in vehicle exhaust and welding fumes, up to 700º F. Optional components include:
- Exhaust Fan comes with motor overload
- Bird Screen
- Backdraft Damper
- Exhaust Duct
- Wall Flashing
- Extension Hoses & Hoods
- Internal supporting mechanism made of mild steel tubing c/w 3 spring-assisted joints to provide precise counterbalancing of the extractor`s inner and outer arm
- The FLEXI Extraction Arm comes with a black baked-on enamel steel hood with optimized airflow & ring handle, and built-in damper, and with black baked-on enamel wall bracket
- Our extraction arm is supported through a wall mounting bracket, dual-hinge spring-loaded mechanism, built-in damper, easy adjustment, and secured positioning
- The extraction arm comes in lengths with a range from 7 feet to a maximum length of 17 feet, allowing for sources that may be upstream or downstream to be covered and have the fumes, dust, or gases captured
***The P-149 and P-152 fans mount directly to the wall bracket of the arm***
- Very lightweight and requires little to no adjustment
- Only 1.6 pounds of force required to position
- Soft hose prevents damage
- All-steel structure
- No white metal or plastic parts
- Low-maintenance
Top 5 contaminants/processes/applications:
- Welding Smoke
- Food & Pharma Dusts
- Paint Fumes from spray balms
- Prosthetic Dusts
- Contaminants from Dental Processes
Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
- Extension Hood (Up to 36" in diameter)
- Direct Mount Fans - 1.0 HP - (Motor Starter not included)
- Direct Mount Fans - 2.0 HP - (Motor Starter not included)
- Fan Termination Kit
- Stanchions & Wall Brackets
- H-Max Articulating Extension Boom for Flexi-I - 300° F
- H-Max Articulating Extension Boom for Flexi-II - 300° F
- Silencer Option (when ordering main unit)
