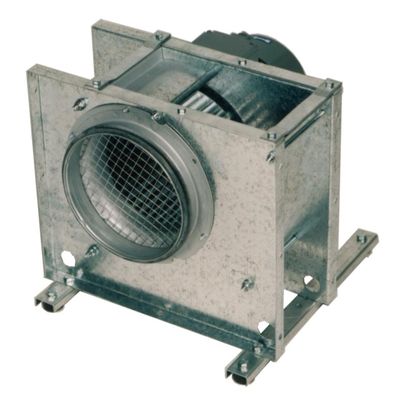

Geovent - Model LSFG / MSFG 146 - 250 -Extraction Fan

GEOVENT centrifugal fan LSFG and MSFG with forward curving impeller is used for extraction within the industry or for comfort ventilation, depending on the variant. The fan is made of 100% galvanized steel for optimum corrosion resistance and therefore, it is suitable for outdoor installation on the roof or on the wall. There is a complete program of accessories, and the fan can be delivered with a number of options, such as flex connection, mountings, rainshield, motor protection, pressure monitor and soundproof box. As standard we supply supporting angels with vibration absorbers, inlet nozzle with net and clamp for mounting the outlet flange. Motor: Directly driven by a B5-Flange motor. Sealing class IP-55. Voltage: 3x400V or 1x230V / 50 Hz 3 of the fans sides can be used as mounting flange. Made of hot-galvanized plate. All screws and bolts are electro galvanized.
