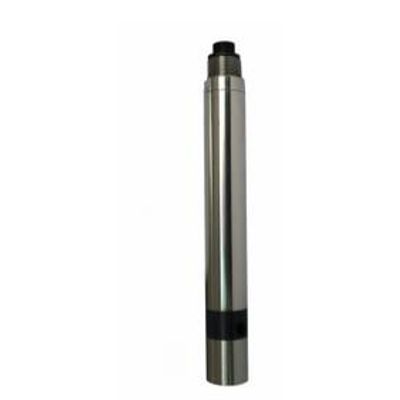

ExtremeConductivity Sensor

SHARE

Conductivity sensor adopts a new generation of four-electrode technology with a wide measurement range and can automatically adjust the range. Automatic temperature compensation.  The electrode can adapt to a variety of harsh water environments and will not be polarized in long-term use, reducing maintenance costs.

Most popular related searches
  • Product name: Digital conductivity sensor
  • Detection principle: Electrode method
  • Response time:
  • Measuring range: 1uS/cm-300 mS/cm
  • measurement accuracy: ± 1%
  • Resolution: 1uS/cm
  • temperature range: 0~ 50°C
  • Storage temperature: -20 ~ 80 °C
  • output signal: RS-485 ,  MODBUS protocol
  • Calibration method: 1 or 2 point calibration
  • Waterproof level: IP68
  • Under pressure: 3bar
  • product material: 316/POM
  • Product Size: Φ22 X 165mm
  • Power information: DC 6~12V , current <50mA
  • Cable length: Standard 5 meters
