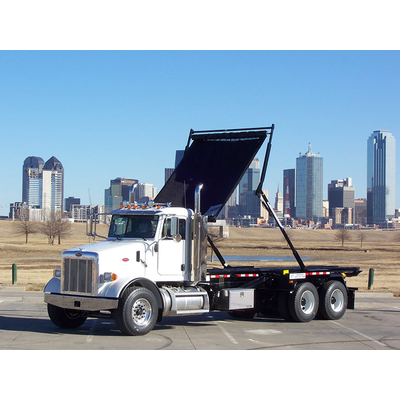

O`Brian - Model Magnum-XD -Extreme Duty Tarp System

SHARE
The 3/4″ solid steel elbow withstands more abuse and shock loads while offering greater container adjustability than the competition.
Most popular related searches
compactor container
containment tarp
grit application

What makes the Magnum tarp system, an Extreme Duty tarp system?

  • The low-profile pivot assembly maintains the arms and pivot below the container floor, unlike the ‘tombstone’ style tarping systems.
  • All pivot points feature self-lubricating bushings, eliminating the need for bi-weekly applications of grit-attracting grease.
  • The upper arms are equipped with deflectors to prevent damage from compactors, bowed containers, and operator errors.
  • Matched displacement lifting cylinders keep the arms aligned without the need for problematic valves that degrade and require replacement.
Upper Arms with Deflectors and 3/4” Solid Steel Elbows
  • More durable, absorbing more abuse and offering greater adjustability compared to competitors.
  • Capable of easily covering containers of 20, 30, 40, and up to 24′ 50-yard sizes, with the roller sitting on the container’s rear.
  • Upper arms remain operational even if bent or damaged, unlike telescoping arm systems.
  • Arm deflectors strengthen the arms, enabling them to deflect off compactor hinges, bowed containers, and driver errors.
Pivot Assembly with Matched Displacement Cylinders
  • The lower arm and main pivot assembly are completely below the container floor, contrasting with “tombstone” style tarpers.
  • Matched displacement lifting cylinders eliminate the need for problematic valves to synchronize the arms.
  • The enclosed pivot assembly enhances cylinder longevity by protecting it.
  • Free from exposed gears, preventing jamming or debris accumulation.
The Total Tarping Package
  • Provides total load containment for 20 to 24′ 50 yard containers.
  • The tarp roller and/or stabilizer bar are designed to sit on the container’s rear, not extending beyond it.
  • A stronger design efficiently distributes tarping loads.
  • Offers a significantly lower cost of ownership compared to imported, tombstone-style tarp systems.
