Exxelia Ohmcraft - Model HVCD Series -High Voltage Chip Dividers for Precision Applications

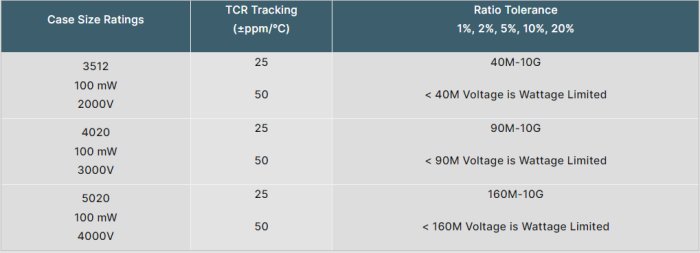

The High Voltage Chip Dividers (HVCD Series) from Exxelia Ohmcraft leverage advanced Micropen® precision printing technology to deliver superior performance in thick-film high voltage surface mount dividers. The serpentine patterned dividers crafted with this technology exhibit precise electrical characteristics essential for various high voltage applications. The HVCD series offers a range of electrical specifications, including TCR tracking within ±ppm/°C and resistance ratio tolerances of 1%, 2%, 5%, 10%, and 20%. Absolute TCR is maintained below 100 ppm/°C, and total resistance tolerance is ±15% (with ±20% for values over 10GΩ). These resistors are designed with a resistive element made from thick film on a 96% alumina substrate, and encapsulated with epoxy. Termination options include tin over nickel barrier or lead solder over nickel barrier. Custom sizes and configurations are available upon request to meet specific needs. Packaging includes bulk, tape & reel, or flat packs that comply with EIA-481 tape and reel specifications.Our patented Micropen® precision printing technology provides superior precision, thick-film high voltage surface mount dividers. Exxelia Ohmcraft’s Micropenned serpentine patterned dividers produce superior electrical characteristics:
- Voltage Ratings to 4000 Volts
- Resistance Values to 10 Gigohms
- Ratio Tolerances to 1%
- Ultra High Stability
- Very Low Noise
- VCR to 1 ppm/V
- TCR to 100 ppm/°C
- TCR Tracking to 25 ppm/°C
- Custom Ratios and Configurations
