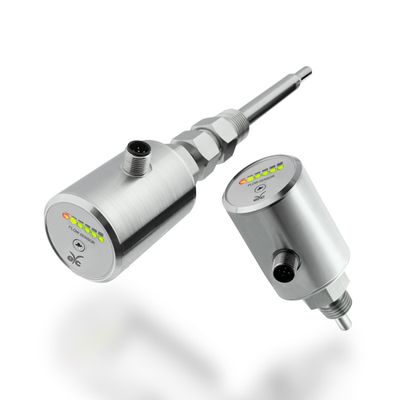

eyc-tech - Model FTC05 -Hot Wire Thermal Flow Switch

Features：Suitable for oil, water and liquid flow monitoring. Also work as level detector.
Sensor type：Resistance Temperature Detector (RTD)
Measuring range：1 ... 200 cm/s(Water) / 3 ... 300 cm/s(Oil) / 6 ... 20 m/s(Gas)
Output：PNP / NPN / Relay
IP rating：IP65(Option IP67)

● The flow switch is suitable for oil, water, gas and liquid level detection
● Can set the switch point or range
● PNP/NPN/Relay output selectable
● Metal shell design, easy installation, measuring rod withstand pressure of 10 bar (length can be customized)
● LED light indicator, simple shape

Hydraulic / Lubrication system / Pump protection / Cooling system / Venting systems / Water treatment / Leak monitoring / Flow detection and control of various delivery pipelines

Input
Input：Resistance Temperature Detector (RTD)
Measuring range：Water : 1 ... 200 cm/s, Oil : 3 ... 300 cm/s, Gas : 6 ... 20 m/s

Output
Output：PNP / NPN / Relay
Signal connection：M12
Load resistance：Type NPN, PNP : 500mA when powered by DC 24 V, Relay : 36 W
Response time：≦3 s
Warm-up time：≦10 s

Environmental
Medium：Water, oil and gas which is compatible with stainless steel
Medium temperature：0 ... +50°C
Operating Temp.：-20 ... +60°C
Operating Humid.：0 ... 100%RH
Storage temperature：-40 ... +85°C
Proof pressure：10 bar

Electrical
Power supply：DC 24 V ±10%
Current consumption：≦70 mA
Overvoltage protection：DC 40 V(Max.)
Electrical connection：M12 connector

Installation
Installation：Thread

Protection
IP rating：IP65(Option IP67)
Electrical protection：■ Reverse polarity ■ Over-voltage ■ Short-circuit

Certification
Certification：CE

Material
Housing：SUS304
Weight：290 g(Without wire)
