eze System - RH/Temperature Sensor with Modbus Connectivity
Fromeze System, Inc.
This sensor measures air temperature and relative humidity with high accuracy and stability, connecting seamlessly to the ezeio system using Modbus/RTU protocol. Up to 40 sensors can be linked to a single ezeio unit, making it suitable for extensive monitoring networks. Its versatile mounting options allow installation on either walls or ventilation ducts, enhancing its utility in various environments. Configuring the Modbus address is simplified through an internal DIP switch. This product's design supports precise environmental data collection, facilitating effective climate control and analysis.Most popular related searches
environmental data acquisition
ventilation duct
monitoring network
environmental data
temperature sensor
air monitoring
air sensor
temperature monitoring

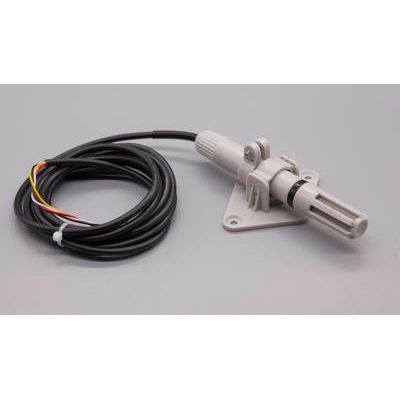

This versatile sensor measures air temperature and relative humidity with good accuracy and stability. It connects to the ezeio system through Modbus/RTU, allowing up to 40 of these sensors to be connected at the same time to a single ezeio.
The sensor comes with a mount that allows it to be used either on a wall or on a ventilation duct.
The Modbus address is easily configured with an internal DIP switch.
- Default bitrate : 9600
- Power supply : 9-30VDC
- Temperature range : -20 to +80 °C
- Temperature accuracy : 0.5 °C
- Humidity range : 1-99%RH
- Humidity accuracy : 3%RH
- Cable length : 1.5m
- Sensor size : L: 115mm D : 17mm
