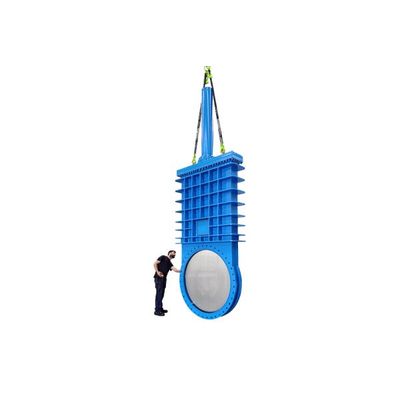

Valvulas - Fabricated Single Wedge Knife Valves
Single wedge is an unidirectional or bidirectional type knife gate valve design. Full flange (welded) sturdy design ideal for high pressure and severe working conditions. Applications: Pulp and Paper, Power generation, Water and Waste Water, Powder and Bulk Handling, Mining, Chemical, Food and Beverage.
Most popular related searches
knife gate valve
stainless steel gate
gate valve
knife gate
proximity sensor
bulk handling
pulp and paper water
gate valve flange
proximity switch
hydraulic actuator
- FLANGE CONNECTION :
- PN6/PN10/PN16/PN25/PN40
- ANSI125/150
- BST E / BST D
- JIS 5K JIS10K
- AS-2129-D/E
- SIZES & PRESSURES :
- DN900 to DN2000: Up to 10 bar (Higher design pressures on request)
- TIGHTNESS :
- Metal/Metal
- PTFE
- Watertight
- MATERIALS : BODY AISI304L, AISI316L, 254SMO, 654SMO, AISI310, AISI904L, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI316Ti. SEAT EPDM, NITRILE (NBR), SILICONE, VITON, GRAPHITE, FLUCAST, PTFE. GATE AISI304L, AISI316L, 254SMO, HARDOX, AISI310, AISI904L, DUPLEX SAF2205, SUPERDUPLEX SAF2507, AISI316Ti. PACKING SYNT+PTFE, Pure PTFE, GRAPHITE, CERAMIC, Greased COTTON.
- ACTUATORS : Hydraulic, electric, gear box, Gear Box + chain-wheel.
- ACCESSORIES AND OPTIONS : Limit switches, proximity sensors, locking devices, extension, regulation v-ports, cleaning holes, etc.
- Face to face as per manufacturer standard. (Others to be confirmed).
- Single piece welded body and bonnet.
- Provided with top cover (bolted bonnet) to prevent leak to the atmosphere.
- Polished stainless steel gate in both sides and with rounded edges to ensure life of the seat.
- Minimum packing area, reduced leak risk and maintenance.
- High flow rates and minimum pressure drop design.
DIRECTIVAS:
- DIR 2006/42/CE (machinery)
- DIR 2014/68/EU (PED) Fluid Group 1(b), 2 (Cat. I. mod. A)
- DIR 2014/34/EU (ATEX) Area 2&22
